Are explosion-proof SIP telephones suitable for gasoline service stations?

A forecourt leak is loud, fast, and stressful. If the emergency phone is not certified for the dispenser area, inspectors can shut the site down. If the phone fails in rain or vandal handling, staff loses the fastest SOS path.

Yes. Explosion-proof SIP telephones are suitable for gasoline service stations when the rating matches the dispenser and sump classification (NEC Class I Div 1/2 or Zone 1/2), the enclosure is IP66 and corrosion-resistant, and the installation follows fuel-station wiring and seal-off rules.

A fuel-station-ready approach: comply, survive, and respond fast

Gasoline stations have predictable hazardous locations

A retail service station ¹ does not have a complex process unit, but it does have clear ignition-risk points:

• dispensers and dispenser cabinets

• under-dispenser sumps and piping trenches

• tank fill points and vent areas

• tank top spaces and monitoring sumps

These points can be Class I Division ² locations in NEC practice, or Zone 1/2 in IEC-style practice. The phone must match the classification at the exact mounting point, not only “the station in general.”

Selection should reflect how stations really operate

Retail stations add stresses that many industrial buyers forget:

• direct sun and UV on the forecourt

• rain and washdown

• vibration from traffic and canopy structure movement

• occasional vandal handling or accidental impacts

• minimal on-site maintenance skills

So a good product choice is not only Ex-certified. It is also simple to use and easy to restore.

The simple benefit: an obvious SOS point

A dedicated emergency SIP ³ phone or call box can:

• auto-dial SOS or a monitoring center

• activate local beacons and strobes

• notify security or the station manager

• create a time-stamped call record for incident review

Now, the key compliance question is classification at dispensers and sumps.

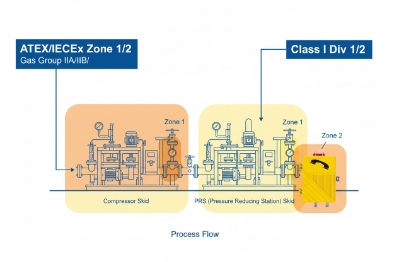

Which NEC Class I Div 1/2 or Zone 1/2 ratings cover dispensers and sumps?

This is where most confusion happens. People assume “the phone is outdoors so it is Div 2.” Then inspectors point to the dispenser and sump rules.

Fuel dispensers and sumps are commonly treated as Class I locations, with the most stringent areas at the immediate dispenser and inside sumps. Many sites apply Class I Div 1 within enclosed vapor spaces like sumps and dispenser cabinets, and Class I Div 2 in surrounding areas. In Zone terms, the nearest release points align with Zone 1 intent and surrounding areas often align with Zone 2, but the final decision must follow the local fuel-station code and the station’s hazard classification plan.

A practical way to specify ratings without overcomplicating it

For many retail projects, the clean procurement approach is:

• Specify Class I Div 2 (or Zone 2) for phones mounted on the forecourt at a safe distance from the dispenser, when allowed by the station layout and code.

• Specify Class I Div 1 (or Zone 1 ⁴) for any phone that must be mounted in a more stringent area due to layout constraints or owner policy.

Many operators standardize on the higher rating to reduce errors, but that can increase cost. The right choice depends on location and station design.

Group selection in NEC vs Zone gas groups

For typical gasoline vapors, Class I Group D is common in NEC language. In Zone gas groups, IIA/IIB is often used depending on the classification approach. The station code and owner standard decide what is required. A conservative buyer often requests a device that covers the required group plus margin and confirms it on the nameplate.

A simple tender table for station layout

If the goal is an emergency call point, it is often easier to place the phone just outside the strictest zone boundary and still keep it accessible. That reduces installation cost and avoids unnecessary Div 1 hardware.

Next, survivability. The forecourt is harsh in a different way than refineries: weather, traffic, and user abuse.

Do IP66 enclosures, anti-spark handsets, and 316 fasteners survive forecourts?

Many phones fail at the same three points: water entry, rusted hardware, and broken handsets. A forecourt is a perfect stress test for all three.

Yes. IP66 enclosures, corrosion-resistant fasteners (such as 316 stainless), and robust handset materials can survive forecourts when seals are UV-stable, cable entries are installed correctly, and the handset design minimizes spark risk and wear from repeated use.

IP66: the baseline that matches rain and hose-down

IP66 protects against strong water jets and dust. For gasoline stations, this is usually the right baseline because:

• rain is constant in many regions

• cleaning crews hose down surfaces

• dust and insects are common

The key is installation. IP66 ⁵ is only real when:

• glands match cable OD and are torqued correctly

• unused entries are plugged with certified plugs

• gasket surfaces are clean after service

Anti-spark handset: what buyers should actually request

Instead of a vague “anti-spark handset” line, a better request is:

• robust, non-fragile handset materials

• no exposed metal parts that can strike and create sparks

• strong strain relief and armored or reinforced cord options

• hookswitch design that resists wear and dirt

Many forecourts will benefit more from durability and correct bonding than from marketing terms. The real ignition protection is still the hazardous-area certification and correct installation.

316 stainless fasteners: small detail, big field impact

Rust staining around screws makes stations look poorly maintained. It also makes maintenance hard because seized screws waste time. A good forecourt build uses:

• stainless fasteners ⁶ and washers

• corrosion-resistant brackets

• anti-galling practice for stainless threads

Once the phone survives the environment, it must support rapid response. Most stations want auto-dial SOS, plus beacons and paging to draw attention.

Can devices auto-dial SOS, link to IP PBX, PAGA, and canopy beacons?

A service station emergency call should be simple: push one button, reach help, and alert people nearby.

Yes. SIP emergency phones can auto-dial SOS or a monitoring center, register to an IP PBX for call routing and logging, trigger beacons through relay outputs, and support paging or PAGA workflows when the network uses VLAN and QoS correctly.

Auto-dial SOS: make it idiot-proof

A good forecourt workflow uses:

• one clearly labeled SOS key

• hotline call to a predefined group (store staff, security, remote monitoring)

• no complex menu steps

• clear call status feedback (LED, audible tone)

If the station has limited staff at night, the call should route to a 24/7 monitoring center.

IP PBX: central control and records

PBX ⁷ integration enables:

• call groups and escalation rules

• call recording where policy allows

• time-stamped call logs for incident review

• remote diagnostics (registration state)

For multi-site station operators, PBX integration also supports fleet-wide templates and faster replacement.

Canopy beacons and strobes: relay-driven is usually simplest

Many emergency call boxes and rugged phones provide relay outputs. These can trigger:

• canopy beacons

• local strobes near the phone

• horn inputs on a small controller

Best practice is to trigger a controller input, not to power large loads directly from a phone relay unless the relay rating is clearly sufficient.

PAGA/paging: use only if the station has the infrastructure

Most small retail stations do not have a full PAGA ⁸ system. Still, paging can be useful in larger service plazas or transport depots. If paging is used, the network should enforce:

• voice VLAN

• QoS for RTP

• IGMP snooping for multicast paging

Now, the last gate is code-compliant wiring and mounting. This is where many service station installs fail inspection.

What wiring methods, seal-offs, and mounting heights meet fuel-station codes?

Even a perfect Ex phone can be rejected if conduit seals are missing, if cables are unsupported, or if the phone is mounted where it invites damage.

Fuel-station wiring must follow the local electrical code for Class I or Zone areas. This usually means listed wiring methods, correct seal-off fittings in conduit systems where required, segregation from non-classified circuits, and mounting that avoids impact while keeping the SOS point accessible.

Wiring methods: follow the station code, not general industrial habits

Typical compliant patterns include:

• conduit systems with required sealing fittings for Class I Div locations

• approved cable types and glands for Zone installations

• mechanical protection where vehicles can strike

• clear separation between hazardous-area wiring and other services

The correct method depends on the region and station design. The installation should always follow:

• the area classification drawing

• the electrical standard for the station owner

• the device installation instructions in the certificate

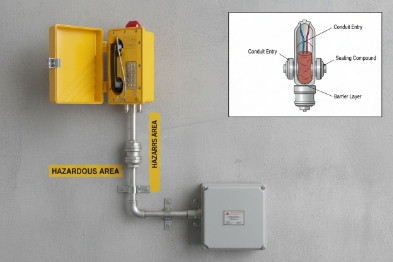

Seal-offs: where projects often fail

Seal-off fittings ⁹ (sealing fittings) are used to prevent vapor migration through conduits and to maintain the integrity of Class I installations. A service station project often fails inspection because:

• seal-offs are missing

• seal-offs are installed in the wrong place

• the compound is not applied correctly

• the fitting is not the right listed type for the conduit system

A practical tender requirement is to include seal-off details in the installation method statement and require photos and records at commissioning.

Mounting height and placement: reduce damage and keep access

A forecourt has vehicles, hoses, and people carrying items. A good placement:

• keeps the phone reachable for staff and customers

• avoids direct vehicle strike paths

• avoids placing the phone inside the strictest hazardous zone when a safe boundary location is available

• keeps the handset and buttons visible under canopy lighting

Mounting should also consider accessibility rules where required and keep the handset cord protected from snagging.

A simple installer checklist that passes audits

With correct rating, durable build, clean integration, and code-correct wiring, an Ex SIP phone becomes an effective safety feature for fuel stations.

Conclusion

Explosion-proof SIP telephones suit gasoline stations when dispenser/sump ratings match Class I/Zone rules, IP66 and 316 hardware survive forecourts, SOS and beacon workflows are configured, and wiring, seal-offs, and mounting follow fuel-station codes.
