Are explosion-proof SIP telephones suitable for oilfield gathering stations?

Oilfield gathering stations are the chaotic "front lines" of energy production, where crude oil and natural gas are collected from multiple wells, separated, and metered. These sites are often remote, unmanned, and rife with hazards like high-pressure leaks and deadly Hydrogen Sulfide (H2S) gas. Can a communication device truly survive in such an unforgiving "sour gas" environment?

Yes, explosion-proof SIP telephones are indispensable for oilfield gathering stations. Engineered to meet Zone 1/2 and Class I Division 1/2 standards, they provide a critical lifeline in hazardous areas. Their corrosion-resistant 316L stainless steel housings withstand H2S and desert sand, while seamless integration with ESD valves and PAGA systems enhances site safety.

The High Stakes of the "Midstream"

A gathering station is where the raw reality of extraction meets the precision of processing. It’s a complex web of flowlines, test separators, and dehydration units. For operators, the risks are threefold: explosive atmospheres, toxic exposure, and isolation.

In my 15 years with DJSlink, I have visited gathering stations in the blistering deserts of the Middle East and the frozen steppes of Central Asia. The common denominator is the need for absolute reliability. When a "pig" ¹ (pipeline inspection gauge) jams or a separator pressure valve spikes, the technician on-site needs immediate voice contact with the central control room (CCR). A standard industrial phone would not only corrode in weeks due to sour gas exposure but could also ignite a fugitive emission cloud with a single ring.

Replacing legacy analog systems with SIP (VoIP) technology brings digital intelligence to these remote outposts, allowing for remote diagnostics and integration with safety loops. But to survive, the hardware must be fortress-like.

Which Zone 1/2 or Class I Div 1/2 ratings suit separators and manifolds?

The classification of a gathering station depends on the proximity to the hydrocarbon source.

Separators, manifolds, and pig launchers are high-risk zones where ignitable concentrations of gas can exist under normal operating conditions. These areas typically require Zone 1 (IECEx/ATEX) or Class I Division 1 (NEC) ratings. Peripheral areas may be classified as Zone 2 or Class I Division 2, but standardizing on Division 1 equipment reduces safety complexity.

Mapping the Danger Zones

Understanding the specific zoning around equipment is vital for compliance.

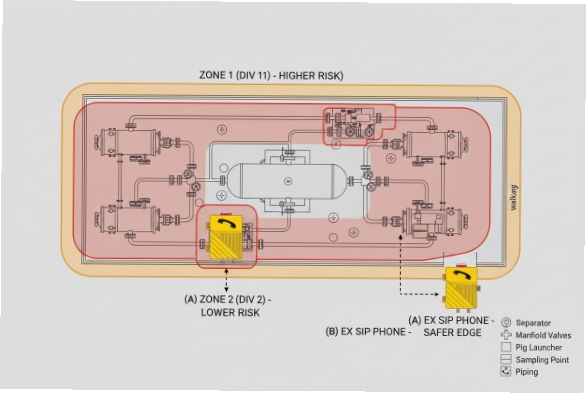

• Class I, Division 1 ² / Zone 1: This includes the immediate vicinity (usually within 1.5 to 3 meters) of Test Separators, Production Manifolds, and Pig Launchers/Receivers*. Here, gas is expected to be present during routine operations like sample taking or maintenance venting. Equipment must* be flameproof (Ex d).

• Class I, Division 2 / Zone 2: Areas further away from the source or well-ventilated outdoor sections. While gas is not expected normally, a gasket failure could create a hazardous cloud.

• Gas Groups: Most gathering stations deal with Methane and Propane (Group IIA/D) and Ethylene (Group IIB/C). However, if Hydrogen is used in any on-site treating, Group IIC (Group B) equipment is required. Our phones are certified IIC/Group B to cover all scenarios.

Will IP66/IP67, UV-resistant housings endure H2S, sand, and sun?

Environmental durability is just as critical as explosion protection.

Absolutely. IP66/IP67 ratings ensure the device is sand-tight and waterproof against torrential rain or washdowns. Most importantly, 316L Stainless Steel housings are mandatory to resist Hydrogen Sulfide (H2S) stress cracking and pitting, while offering immunity to UV radiation that destroys plastic enclosures.

The "Sour Gas" and Sand Challenge

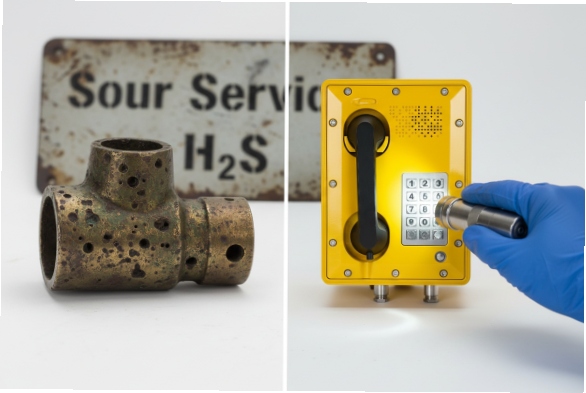

• H2S Corrosion: Hydrogen Sulfide ³ is a silent equipment killer found in "sour" crude. It attacks copper and aluminum, leading to rapid failure. We use Electro-polished 316L Stainless Steel ⁴ for the phone body and handset cord armor. This material is virtually immune to sulfide stress cracking.

• Sandstorms: In desert oilfields, wind-blown sand acts like sandpaper. Painted aluminum eventually strips down to bare metal, leading to oxidation. Stainless steel resists this abrasion.

• Extreme Heat & UV: Surface temperatures in a desert gathering station can exceed 70°C. Plastic components become brittle and crack under UV exposure, compromising the Ex rating. Our metal construction, combined with UV-resistant silicone keypads, withstands decades of sun exposure.

Can systems link to IP PBX, PAGA, beacons, and ESD valves?

A modern gathering station requires an integrated safety ecosystem.

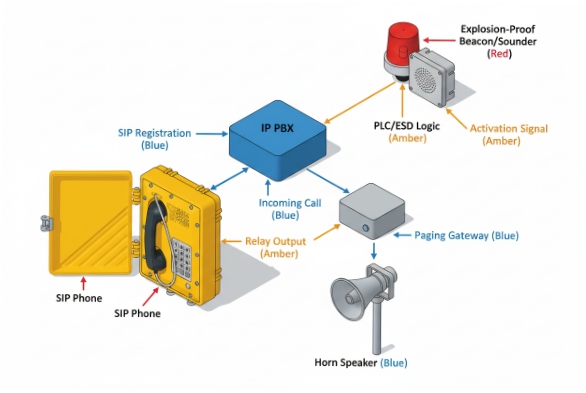

Yes, SIP telephones connect via fiber or wireless links to the corporate IP PBX. They serve as local PAGA stations, driving external flashing beacons (essential in noisy compressor areas) and can interface directly with Emergency Shutdown (ESD) systems to trigger valve closures in critical situations.

Integration for Remote Operations

1. Visual Alerting (Beacons): Gas compressors and high-pressure pumps are deafening (>100dB). A phone ringing is inaudible. We configure the SIP phone to trigger a Blue (General) or Red (Emergency) Explosion-proof Xenon Beacon via its built-in relay. This ensures the operator sees the call.

2. ESD (Emergency Shutdown): The phone can be hardwired into the station’s safety loop. A dedicated "ESD" button on the phone faceplate can be programmed to break a circuit, triggering the Emergency Shutdown Valve ⁵ (ESDV)** on the inlet manifold, isolating the station instantly.

3. SCADA Voice Gateway: In unmanned stations, the SIP phone can act as a microphone for the control room, allowing them to "listen in" on the ambient noise of pumps to detect mechanical anomalies before deploying a team.

What conduit seals and bonding protect near heaters and pig traps?

Installation errors are the leading cause of safety failures in oilfields.

Proper installation near heaters and pig traps requires EYS conduit sealing fittings within 18 inches of the device to prevent "pressure piling." Equipotential bonding is critical at pig traps to dissipate static electricity generated by pipeline friction. High-temperature cables are needed near line heaters.

Critical Installation Details

• Pig Traps & Static: Launching or receiving a pig involves opening a pressurized vessel. The friction of the pig moving through the pipe generates massive static charges ⁶. The SIP phone and its cable armor must be bonded to the station’s Earth Grid to prevent a spark gap that could ignite the venting gas.

• Conduit Seals (EYS): Gas can travel inside electrical conduits, turning a wiring system into a fuse. EYS Sealing Fittings ⁷ filled with distinct compound must be installed at the phone’s entry point to block gas passage.

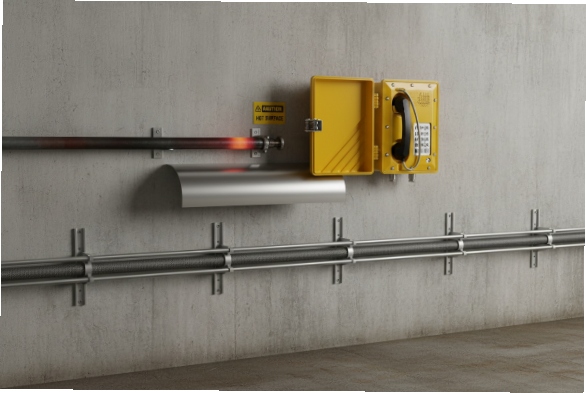

• Line Heaters: Gathering stations often use heaters to prevent hydrate formation ⁸. If the phone is mounted near a heater, cabling must be rated for high temperatures (e.g., mineral-insulated cable) to prevent insulation melt, which leads to short circuits.

Conclusion

Oilfield gathering stations are unforgiving environments where compromise is not an option. By selecting Zone 1/Class I Div 1 certified SIP telephones with 316L stainless steel construction, you protect your workers from explosive hazards and your equipment from H2S corrosion. Integrated with your ESD and PAGA systems, DJSlink’s solutions provide the robust, intelligent communication layer necessary for safe and efficient midstream operations.
