Are explosion-proof SIP telephones suitable for open-pit mines?

A missed emergency call in a pit is not a “small IT issue.” It can stop loading, delay blasting, and put crews at risk in seconds.

Yes, explosion-proof SIP telephones can fit open-pit mines, but only in the right zones. Most pit locations need rugged IP SIP phones (IP66/IP67 + IK10 + UV) and a mine-ready network design more than Ex certification.

The real conditions an open-pit mine throws at your SIP endpoint

The pit is an outdoor factory with moving hazards

An open-pit mine hits equipment with dust, vibration, UV, and sudden temperature swings. Water is not only rain. It is also washdown, slurry splash, and seasonal flooding in cable trenches. A phone can be “dust-tight” on paper but still fail if fine dust enters through glands, cable boots, or a badly seated gasket.

Blast shock is different from “impact resistance”

IK ratings ¹ talk about a controlled hit on an enclosure. Blast shock is a pressure wave plus vibration, and it arrives through the air and the mounting surface. A strong enclosure helps, but the mounting design often decides survival. A phone mounted on a thin steel post can see more movement than a phone on a rigid concrete wall, even if the phone itself has a higher IK rating.

Networks fail in pits before endpoints fail

In my deployments, the phone body usually survives. The failures come from long copper runs, bad grounding, lightning induction, corroded connectors, and unstable power at remote benches. If the network is designed like an office LAN, the pit will expose every weak link.

Threat in open-pit mines	What a rating covers	What the rating does NOT cover	What to add in the design
Fine dust and windblown grit	IP6X helps block dust entry	Bad cable glands, poor gasket compression, pressure pumping	Sealed glands, proper strain relief, pressure equalization vent, maintenance checks
Heavy rain and washdown	IP66 2/IP67 helps block water jets or immersion	Water tracking inside conduit, capillary action in cable	Drip loops, gel-filled glands, raised mounts, sealed junction boxes
Flyrock and tool strikes	IK helps with impact	Blast pressure, mounting resonance	Standoff mounting, recessed placement, protective cage
Sun and heat	UV-resistant enclosure helps	Heat soak inside sealed boxes	Light-colored housing, sunshade, thermal design
Lightning and switching surges	Nothing in IP/IK	Surge energy on copper pairs and PoE	SPD 3 at both ends, bonding, fiber backbone, proper grounding

A mine-ready plan starts with a simple rule: use explosion-proof devices where the hazardous-area study says “hazardous,” and use ruggedized devices everywhere else. Then design the power and network like critical infrastructure.

Keep reading, because the details inside each “rating” decide whether the system works after the first season.

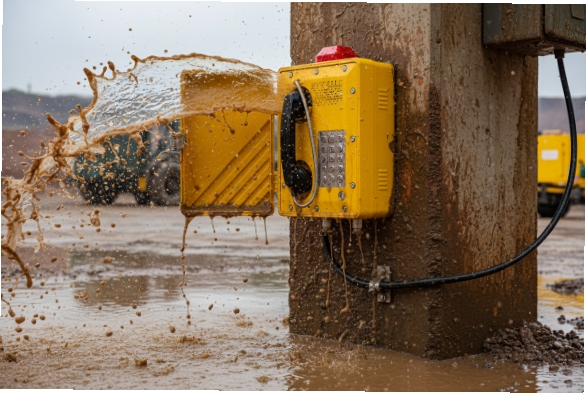

Do IP66/IP67, IK10, UV-resistant enclosures withstand dust, blast shock, and weather?

Dust and weather are where IP66/IP67 and UV resistance shine, but blast shock needs mechanical planning around the phone, not only a stronger enclosure.

IP66/IP67 and IK10 can handle most dust, rain, washdown, and everyday abuse in pits when the installation is correct. Blast shock and flyrock risk still demand smart placement, shielding, and mounting that isolate vibration and protect the faceplate.

What IP66/IP67 really buys in the pit

IP66/IP67 describes ingress protection. It helps a lot in dust storms, hose washdown, and seasonal rain. But mines often fail equipment through the “edges”: cable entry points, glands, handset cords, and maintenance mistakes. A phone can be IP67 and still leak if the installer overtightens a gland and cracks the seal, or if the conduit lets water pool against the entry.

Practical procurement notes:

• Ask for the full enclosure system rating, not only the front panel.

• Ask how the handset cord, keypad, and speaker grill keep the rating.

• Specify stainless fasteners and anti-seize for corrosive sites.

What IK10 really means for abuse and vibration

IK10 tells you the enclosure can tolerate a defined impact level. This is useful when tools hit the phone, when a door slams, or when grit and rocks strike the body. But blast-related vibration is more about repeated stress and mounting resonance. A pit blast can shake a mounting pole hard enough to fatigue brackets over time.

So the real strategy is:

• Use a rigid mounting surface.

• Add a protective cage or a recess box if flyrock is possible.

• Use vibration-resistant fasteners and locking methods.

UV resistance is not a checkbox

“UV resistant” can mean many things. Polycarbonate with UV stabilizers ⁴ can work well. Powder-coated aluminum can also work. In desert pits, the enclosure color and surface finish matter because they affect heat soak. In coastal mines, salt plus sun can break down coatings fast.

A simple rule helps: treat “UV resistance” as a life-cycle target. Ask for outdoor aging test references, and plan a replacement cycle for external gaskets and handset cords.

Installation choices that decide survival near blasting

When blasting is part of the area, phone placement becomes a safety engineering task:

• Put phones behind berms, walls, or blast shields when possible.

• Avoid mounting directly on thin steel posts near blast lines.

• Keep cable routes away from blast vibration hot spots and rockfall paths.

• Use service loops so the cable does not pull on glands during vibration.

Spec item	What to ask for	Why it matters in open pits	Common mistake to avoid
IP rating	IP66 or IP67 for full assembly	Dust + rain + washdown exposure	Rating applies only to the front panel
IK rating	IK10 for public/industrial areas	Tool impacts and rough handling	No protection for mounting bracket fatigue
UV resistance	Stabilized polymer / outdoor coating	Sun exposure and heat cycling	Dark housings that overheat in direct sun
Cable entry	Certified glands + strain relief	Water tracking and dust pumping	Straight-up conduit with no drip loop
Mounting	Rigid base + protective cage option	Blast vibration and flyrock	Thin poles that amplify vibration

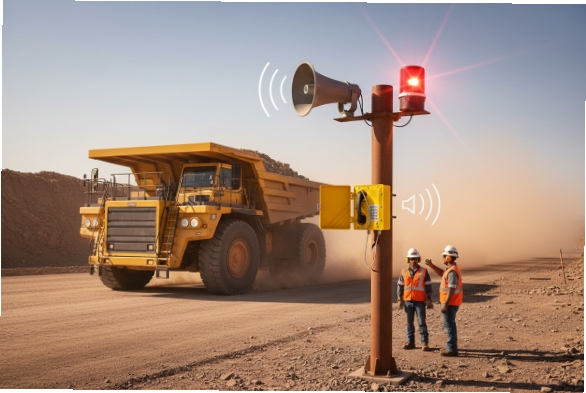

Are 120 dB horns, strobes, and noise-canceling mics effective near haul trucks?

Haul roads are loud, and operators wear PPE. A normal ring and a normal handset mic often fail in real use.

A 120 dB horn and high-intensity strobe can be effective near haul trucks if placement is right and alerts are layered. Noise-canceling mics work best when users stay close to the mic and the system uses echo and noise suppression tuned for industrial noise.

What “120 dB” means in open air

A horn rating is usually measured close to the device, often around 1 meter. Sound drops fast in open air. In free-field conditions, each doubling of distance cuts about 6 dB. A 120 dB horn at 1 m becomes roughly:

• 114 dB at 2 m

• 108 dB at 4 m

• 102 dB at 8 m

That is still loud, but pit noise can also be high. Engines, exhaust brakes, and rock impacts can mask tonal alerts. That is why a horn alone is not enough.

A reliable pattern uses layers:

• Horn for immediate attention.

• Strobe for line-of-sight confirmation.

• Optional call-forward or group paging to reach supervisors.

Strobelights work when sunlight and dust are considered

A strobe that looks bright indoors can disappear in full sun. Dust also scatters light and reduces contrast. In pits, strobes work best when:

• The lens is large and cleanable.

• The color is chosen for the site (red/amber often stands out).

• The device is mounted above the main dust plume height when possible.

It also helps to pair strobes with signage so new workers know what the light means.

Noise-canceling microphones: where they help and where they fail

Most “noise canceling” is not magic. It depends on close-talk design, mic placement, and DSP ⁵ tuning. It works best when the user keeps the mouth close to the mic and speaks steadily. It struggles when the user stands back, turns away, or shouts from the side.

For mines, the best results often come from:

• A close-talk handset mic or gooseneck mic.

• Strong acoustic echo cancellation ⁶.

• Automatic gain control that does not pump background noise.

• Optional push-to-talk mode for extreme noise zones.

Placement beats raw audio specs

A phone installed beside a haul road will always struggle compared to a phone installed 20 meters behind a barrier. Small placement changes can give big signal-to-noise gains:

• Mount on the sheltered side of a structure.

• Avoid direct wind blast into the mic area.

• Use wind guards and sealed speaker grills.

Area in the pit	Typical problem	Alert approach that works	Voice approach that works
Haul road edge	Engine and brake noise masks ring	120 dB horn + strobe + call group	Close-talk handset + DSP + optional PTT
Crusher station	Continuous high noise + dust	Strobe + horn + paging integration	Hands-free is risky; use handset or headset
Remote bench	Wind + distance	Horn + bright strobe	Wind-resistant mic and sheltered mount
Workshop yard	Impacts and movement	Strobe + moderate horn	Standard handset with echo cancel

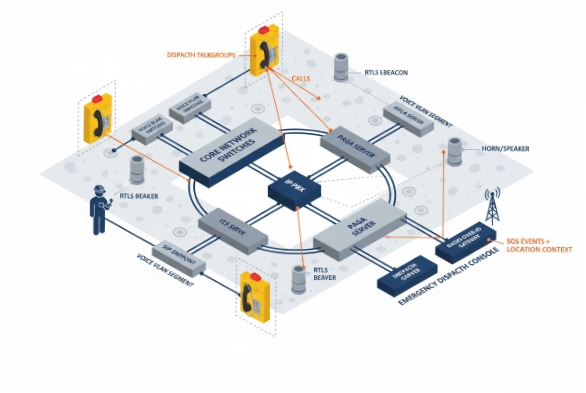

Can systems integrate with IP PBX, PAGA, RTLS, and dispatch radios?

If the system only “registers to a PBX,” it is not a mining communication system yet. Mines need paging, alarms, location context, and radio bridging.

Yes, SIP endpoints can integrate with IP PBX and PAGA using SIP calls or multicast paging, and they can connect to RTLS and dispatch radios through APIs and gateways. The key is to define call flows, alarm triggers, and redundancy before hardware selection.

IP PBX integration is the easy part

Most SIP phones and intercoms can register to an IP PBX ⁷. The mine-specific details are:

• Dial plan that matches pit geography (bench, crusher, gate, fuel farm).

• Ring groups for emergency and maintenance.

• Failover rules when WAN links drop between pit and control room.

• Call recording and audit logs for incident review.

PAGA: paging is a traffic problem, not only an audio problem

Paging can be unicast (one stream per endpoint) or multicast (one stream that many endpoints listen to). In large sites, multicast reduces load and improves timing across many horns and speakers. It also helps keep paging working even if some SIP registrations are down.

A common design is:

• PBX triggers a paging server or paging gateway.

• Paging gateway sends multicast RTP to speaker groups.

• Horn speakers and indoor stations subscribe to the multicast group.

RTLS adds context to alarms and calls

RTLS ⁸ can make calls smarter. If a worker hits an SOS call box, the dispatch screen should show where it happened. That usually needs integration between:

• The SIP event (call setup, DTMF, or alarm input),

• The RTLS platform (tag location),

• The dispatch UI (map and workflow).

The clean approach uses a middleware layer that correlates events and exposes them to the dispatch platform via a REST API or message bus.

Dispatch radios: bridge carefully

Radio traffic is usually push-to-talk and group-based. SIP is session-based. A radio-over-IP gateway can bridge these worlds. The design choices include:

• Which radio talkgroups map to which SIP extensions or paging zones.

• Priority rules (emergency overrides routine traffic).

• Recording rules and legal retention needs.

• Latency tolerance for critical calls.

In mining, it is common to keep radio as the primary dispatch channel and use SIP for fixed endpoints, call boxes, and plant paging. The bridge then becomes a controlled interoperability path, not a free-for-all.

Security and management matter

Every integration point is also a risk point. A mine should specify:

• VLAN segmentation for voice, paging, cameras, and RTLS.

• Device certificates or strong SIP auth.

• Central provisioning and remote firmware control.

• Syslog/SNMP monitoring for proactive maintenance.

System to integrate	Typical method	What to specify in the tender	What to test in FAT/SAT
IP PBX	SIP registration, SIP trunk	Codec, SRTP/TLS needs, failover	Re-register time, failover calls
PAGA	SIP paging gateway, multicast RTP	Paging zones, priority, audio level	Paging delay, zone coverage
RTLS	API event correlation	Event format, map zones, timestamps	Location accuracy in alarms
Dispatch radios	RoIP gateway	Talkgroup mapping, priorities	Latency, audio quality, override logic

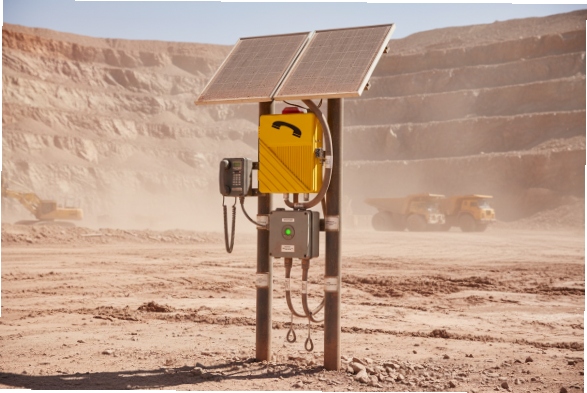

What solar-PoE, surge protection, and armored fiber improve reliability?

Remote benches and perimeter gates are where mines lose uptime. Power is unstable, and copper lines become antennas for surge energy.

Solar-PoE works well for remote SIP phones when the power budget is calculated and the PoE chain is kept simple. Add surge protection at both ends of copper runs, and use armored fiber for long distances, lightning isolation, and clean switching between pit and control room.

Solar + PoE: build from the load backward

Start with the real load profile, not the marketing sheet. A SIP phone may draw modest power most of the day, but horns, strobes, heaters, or camera add-ons can spike the budget. Then add margin for cold batteries, dust on panels, and aging.

A practical solar PoE kit for a remote phone often includes:

• Solar panel sized for worst-month sunlight.

• MPPT controller.

• Battery sized for several days of autonomy.

• DC-DC stage or PoE injector that stays stable as battery voltage changes.

• A sealed outdoor cabinet with proper vents and cable management.

PoE distance and topology choices

Ethernet copper runs have distance limits. In pits, long runs also face mechanical damage. When copper must be used, a small outdoor switch or PoE extender in a protected cabinet can shorten the longest span. But every extra box is another maintenance item, so the clean design is often fiber backbone + local PoE at the edge.

Surge protection is not optional

Open areas attract lightning, and pits have long exposed runs. Surges can enter through:

• PoE copper lines,

• AC feeds to remote cabinets,

• Ground potential rise between distant points.

A solid practice is:

• Install surge protection devices (SPD) at the cabinet entry and near the core switch.

• Bond and ground cabinets correctly.

• Keep copper runs short and shielded when possible.

• Prefer fiber between buildings, benches, and towers because it breaks electrical paths.

Armored fiber: the mining backbone

Armored fiber improves reliability because it avoids electrical interference and handles long distances. In mines, “armored” should mean something practical:

• Steel tape or corrugated armor for crush resistance.

• Rodent protection where needed.

• Proper conduit or burial depth planning.

• Slack storage and clean splice enclosures.

Topology also matters. Rings with rapid spanning or ERPS ⁹ can keep voice and paging alive when a haul truck damages one segment.

Monitoring and spares keep systems alive

A mine network should monitor:

• PoE power draw per port,

• Switch temperature,

• Link flaps,

• Packet loss on voice VLAN,

• Battery voltage in solar cabinets.

Spare kits should include glands, gaskets, handset cords, surge modules, and one complete spare endpoint per critical area.

Reliability upgrade	What it fixes	What to specify	Field habit that helps
Solar + battery + PoE injector	No grid power at remote points	Autonomy days, MPPT, temp range	Clean panels, battery health checks
Industrial PoE switch in cabinet	Long copper runs and voltage drop	PoE budget, -40 to +75°C	Label ports, keep spares
Ethernet/PoE surge protectors	Lightning induction and spikes	Response time, grounding method	Inspect ground bonds seasonally
Armored fiber backbone	EMI, long distance, lightning isolation	Armor type, splice plan	Protect handholes from water
Redundant ring topology	Cable cuts by equipment	RSTP/ERPS, failover time	Document routes and restore plans

Conclusion

Explosion-proof SIP phones can fit open-pit mines in hazardous zones, but mine uptime comes from rugged ratings plus smart mounting, loud alerts, and a fiber-first, surge-protected network. Contact Jason Mark: info@sipintercommanufacturer.com

---
