Are explosion-proof SIP telephones suitable for railway tank farms?

Railway tank farms are dynamic, high-risk environments where millions of gallons of volatile fuels are transferred under tight schedules. The combination of moving locomotives, flammable vapors, and high-pressure pumping creates a "perfect storm" for accidents. Standard communication gear is a non-starter here; you need equipment that can survive the rails and the fumes.

Yes, explosion-proof SIP telephones are standard safety equipment for railway tank farms. Certified for Zone 1 and Class I Division 1 loading rack areas, these devices utilize fuel-resistant 316L stainless steel enclosures and integrate directly with overfill sensors and ESD systems to provide immediate response capabilities during transfer operations.

The Logistics of Liquid Danger

A railway tank farm isn’t just a parking lot for trains; it’s a chemical processing zone. Whether loading crude oil, ethanol, or LPG, the "loading rack"—the platform where the arm connects to the tanker car—is the critical point of vulnerability.

In my work with logistics companies, I’ve seen how vital clear communication is during the "spotting" of railcars. If a car isn’t aligned perfectly, the loading arm won’t seal. If a leak occurs, the operator is often perched 15 feet in the air on a gantry, far from the control room. A fixed, explosion-proof phone right on the rack allows for immediate coordination without relying on spotty radio coverage.

However, the equipment faces unique threats:

• Chemical Attack: Constant exposure to hydrocarbon vapors.
• Mechanical Stress: Vibration from shunting locomotives.
• Electrical Surges: Rail tracks are notorious conductors for lightning strikes.

Which Zone 1/2 or Class I Div 1/2 ratings cover loading racks?

The zoning around a railcar loading rack is complex because the hazard source (the hatch) moves.

The immediate area around the loading arm and the open dome of the tank car is typically classified as Class I, Division 1 (or Zone 1). The wider gantry and platform deck usually fall under Class I, Division 2 (Zone 2). To ensure universal safety regardless of arm position, Division 1 / Zone 1 equipment is recommended for the entire rack.

Defining the "Bubble" of Danger

• Class I, Division 1 ¹ / Zone 1:** This is defined as a 3-foot to 5-foot radius around the tank car opening or the loading arm connection point. Since operators stand here to supervise the fill, the phone mounted on the gantry column is effectively in the line of fire for vapors.

• Vapor Density: Heavier-than-air gases (like gasoline or LPG ²) flow downward. A phone mounted at waist height on the platform might be sitting in a dense vapor layer. Therefore, Group IIA or IIB (Group D/C) certification is mandatory.

• Temporary Zones: Remember, when a train pulls in, it brings the hazard with it. Equipment must be permanently rated for the worst-case scenario (active loading).

Do IP66/67 316L enclosures resist fuels, salt fog, and vibration?

The physical environment of a rail terminal is brutal. It’s outdoors, exposed, and vibrating.

Yes, IP66/IP67 ratings prevent ingress of driving rain and fuel mist. We specify 316L Stainless Steel housings because they are impervious to hydrocarbon solvents that dissolve plastics. Furthermore, internal components are shock-mounted to withstand the low-frequency vibration transmitted through the steel structure from locomotive engines.

Material Resilience

• Hydrocarbon Resistance: Standard ABS plastic phones can soften or crack when exposed to diesel fumes or ethanol splashes over time. Stainless Steel 316L is chemically inert to these fuels, ensuring the housing never becomes brittle.

• Salt Fog: Many tank farms are located near ports (intermodal transport). The combination of salt air and industrial fumes is highly corrosive. 316L ³ provides the necessary marine-grade protection.

• Vibration Damping: Rail gantries shake. A lot. Our SIP phones use vibration-locking screws and potted electronics ⁴ to prevent the handset cable from shaking loose or the circuit board from cracking during shunting operations.

Can phones integrate with IP PBX, PAGA, overfill, and ESD systems?

In modern logistics, the phone is a control endpoint.

Absolutely. SIP phones integrate with the terminal’s IP PBX for voice. Crucially, they link to the PAGA system to broadcast "Stop Loading" alarms and interface with the Overfill Protection Monitor. If the monitor detects a tank high-level, it can trigger the phone to dial security and flash a strobe.

The Safety Loop

1. Overfill Prevention: Loading racks use automated sensors to stop the flow if a tank is full. The SIP phone can be configured to receive a signal from this system. If a "Spill" alarm triggers, the phone can automatically announce a pre-recorded evacuation message over the gantry speakers.

2. ESD (Emergency Shutdown): Every second counts. Our phones feature a dedicated, programmable ESD Button. Pressing this doesn’t just call the control room; it can send a SIP message ⁵ or close a relay to trip the main pumps immediately.

3. Man-Down Functions: If an operator slips on an icy gantry, the phone (if equipped with a dead-man timer or if used as a check-in point) can alert supervisors if a scheduled check-in is missed.

What cord reels, seal-offs, and lightning protection are recommended?

Installation on a steel structure connected to miles of track requires specific electrical precautions.

Installation requires EYS sealing fittings to stop vapor migration into the conduit grid. Massive surge protection (SPD) is critical because rails conduct lightning strikes from miles away. While phones don’t use "cord reels," we recommend heavy-duty armored curly cords or extra-long vandal-resistant handset cables to allow operator mobility on the platform.

Critical Accessories

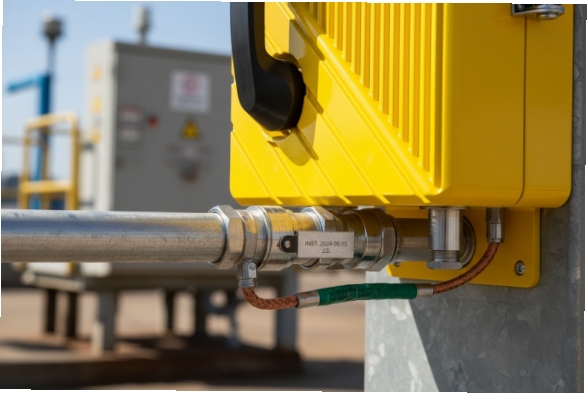

• Seal-Offs (EYS): Just like in other hazardous areas, you must install a sealing fitting with potting compound ⁶ within 18 inches of the phone. This prevents the conduit from becoming a "gas pipe" that delivers explosive vapors to the safe-zone switchgear.

• Lightning Protection: Railway tracks are essentially giant lightning rods. A strike miles away can send a surge down the line into the gantry structure. Industrial-grade Surge Protection Devices ⁷ (SPD)** on both the power and Ethernet lines are mandatory to save the phone’s electronics.

• Armored Cords: The handset cord is the most abused part. On a loading rack, it can get snagged on safety harnesses or tools. We use stainless steel spiral-armored cords with a high-tensile internal lanyard to prevent snapping.

Conclusion

Railway tank farms demand a unique blend of chemical resistance and mechanical toughness. By deploying Zone 1 certified SIP telephones with 316L housings and integrating them into your ESD and overfill systems, you close the safety loop. DJSlink provides the ruggedized voice solutions that keep your loading operations efficient and, most importantly, safe from the first car to the last.
