Are explosion-proof SIP telephones suitable for sulfur recovery units?

SRU areas punish hardware with toxic H2S ¹, acidic moisture, and heat. If a phone fails or sparks at the wrong time, people lose their fastest lifeline.

Yes. Explosion-proof (or Ex-certified) SIP telephones are suitable for sulfur recovery units when the Zone/Div marking, gas group, T-class, materials, and installation method match the H2S-rich Claus hazards and the plant’s compliance rules.

What makes a SIP phone “right” for an SRU environment?

SRU reality: the hazard is not only “flammable”

In a Claus ² SRU, the first problem is toxicity. H2S exposure is the daily risk. The second problem is corrosion. Acid gases plus moisture create aggressive conditions for metals, gaskets, and cable jackets. The third problem is ignition risk. Even if the area is well ventilated, releases can happen during upset conditions, maintenance, draining, sampling, or line breaks.

A phone in an SRU must do three jobs at the same time:

• It must not ignite a flammable atmosphere if one forms.

• It must keep working after years of acid gas exposure and washdowns.

• It must stay easy to use with gloves, noise, and emergency stress.

Many teams focus only on the Ex rating. That is important, but it is only one side of suitability. The installation details and environmental durability decide whether the system stays compliant and reliable.

The selection order that avoids commissioning surprises

The safest procurement flow is simple:

1) Start from the hazardous area classification ³ drawing for the SRU.

2) Select the protection concept that fits the location (Ex d ⁴, Ex e, Ex i, or Class/Div equivalent).

3) Verify gas group and T-class against worst-case conditions.

4) Confirm the enclosure rating and material set for acid gas, salt, and heat.

5) Lock in the gland, plug, and bonding method that the certificate requires.

When this order is followed, inspectors usually have fewer questions because the paperwork and the field build tell the same story.

A quick “fit check” table for SRU phones

Checkpoint	What “good” looks like in an SRU	What commonly goes wrong
Hazard marking	Zone 1/2 or Class I Div 1/2 matches the drawing	device rated for the wrong area boundary
Gas group	covers worst-case gas group for the unit	selecting the “typical” group only
T-class	stays cool enough at max ambient and sun load	ignoring heat soak near hot piping
Ingress	IP66/67 with stable seals	IP rating is fine on day one, then gaskets age
Materials	316L or Hastelloy plus compatible gaskets	stainless housing paired with weak glands or seals
Integration	works with PBX, paging, alarms, and PLC rules	phone works alone, but not in the plant workflow

In SRUs, the best phones are boring. They register to the PBX every time. They page when needed. They survive the environment. They pass inspection without drama.

Next comes the rating question, because the words “Claus” and “H2S” often push teams to over- or under-classify the area.

Which Zone 1/2 or Class I Div 1/2 ratings cover H2S-rich Claus areas?

SRU hazards feel extreme, so teams sometimes assume everything is Zone 1 or Class I Div 1. That inflates cost and complicates wiring. Other teams assume “outdoors equals safe,” then fail inspection.

Many SRU outdoor areas are treated as Zone 2 / Class I Div 2, while locations near likely release points can be Zone 1 / Class I Div 1. The correct answer comes from your hazardous area classification for the Claus unit and its release sources.

Where SRUs usually become Zone 1 or Div 1

The SRU has several places where releases are more credible:

• acid gas feed connections and sampling points

• knockout drums, drains, vents, and relief discharge areas

• seal pots, pump seals, and maintenance flanges

• analyzer shelters or enclosed spaces with limited ventilation

If a release can occur in normal operation or during common operating tasks, Zone 1 (or Div 1) can apply close to that source. If releases are not expected in normal operation and would mainly occur under abnormal conditions, Zone 2 (or Div 2) is more typical.

The phone location matters more than the unit name. A phone mounted on a control building wall may be non-classified even if it serves the SRU. A phone mounted on a steel frame beside a drain pot may be classified.

Gas group: H2S is not the only thing in the story

H2S is a key hazard, but SRU streams can include mixtures. Some plants also have fuel gas lines nearby. Even if the SRU itself is consistent, tie-ins and adjacent equipment can change the worst-case gas group.

A safe purchasing habit is to choose a rating that covers the most demanding credible gas group in the boundary where the phone is installed. In many refinery projects, that means selecting a device rated for a stricter group than the minimum on paper, because plant configurations change over time.

A decision table that helps EPC and maintenance agree

Location example	Typical release driver	Rating direction (confirm by drawing)	Practical note
Near vents, drains, sampling points	foreseeable releases during operations	Zone 1 / Class I Div 1 more likely	keep controls simple and rugged
General SRU outdoor pipe racks	releases rare and brief	Zone 2 / Class I Div 2 more likely	focus on durability and audibility
Enclosed analyzer shelter	poor dispersion	tighter classification likely	consider ventilation interlocks and alarms
Control room exterior	usually outside hazardous boundary	non-hazardous devices may be allowed	still choose corrosion and UV resistance

This classification step sets everything else. Once the marking is correct, the next SRU question is material survival in acid gas, heat, and often coastal air.

Will IP66/67, 316L/Hastelloy housings resist acid gases and heat?

SRU corrosion is quiet. Phones look fine for months, then seals soften, fasteners seize, and audio ports clog. When the first emergency happens, the device “works” but nobody can hear.

IP66/67 and 316L are a strong baseline for many SRU outdoor locations, but long service life depends on gasket chemistry, gland materials, and heat exposure. Hastelloy makes sense in the harshest acid-gas or coastal conditions where stainless can pit or crevice-corode.

IP rating protects from dust and water, not from chemistry

IP66/67 ⁵ helps keep dust and water out. That matters in refineries because washdowns and windblown dust are real. Still, acid gases and chemical mist attack what IP tests do not fully cover:

• elastomer gaskets and keypad membranes

• cable jackets

• plating on glands and fittings

• crevices where acidic moisture sits

So IP66/67 should be treated as “necessary,” not “enough.”

316L vs Hastelloy: use the right tool for the site

316L stainless ⁶ performs well in many industrial outdoor environments, especially when the surface finish is good and crevices are minimized. In SRU service, problems show up when:

• chloride exposure is high (coastal air, seawater washdown, salty fog)

• acidic condensate sits in tight joints

• mixed metals create galvanic corrosion at brackets and fasteners

Hastelloy ⁷ is often chosen when the site is both acidic and chloride-heavy, or when the plant wants a longer interval between maintenance visits. It is not required everywhere, but it is a real upgrade where corrosion is a chronic cost.

Heat: the most ignored accelerator

Heat speeds up seal aging and label failure. SRUs also have hot equipment nearby. Even if the phone is not mounted on a hot surface, radiant heat can raise the enclosure temperature. Sun load adds more heat.

Good placement reduces failure more than any exotic alloy:

• mount on shaded structures when possible

• use standoff brackets to reduce heat soak

• keep distance from hot piping and hot casings

• avoid mounting plates that act like heat sinks

Material and seal compatibility table for SRU use

Component	Good SRU choice	Why it helps	What to avoid
Housing	316L or Hastelloy	corrosion resistance	painted mild steel in acid mist
Fasteners	stainless with anti-seize	serviceability and long life	mixed fasteners that seize or rust
Gaskets	FKM or PTFE options	better resistance to hydrocarbons and many chemicals	generic rubber that swells or cracks
Cable glands	stainless, Ex-certified	avoids corrosion at entry	nickel-plated brass in coastal SRU areas
Labels/marking	laser etch or metal tag	survives heat and washdown	adhesive labels that peel

In refinery projects, the most reliable builds combine a corrosion-resistant housing with the correct gasket set and gland material. That combination protects the phone’s real weak point: the seal interfaces.

Once the enclosure survives, the phone must still fit into SRU emergency workflows, where paging and alarms are as important as dialing.

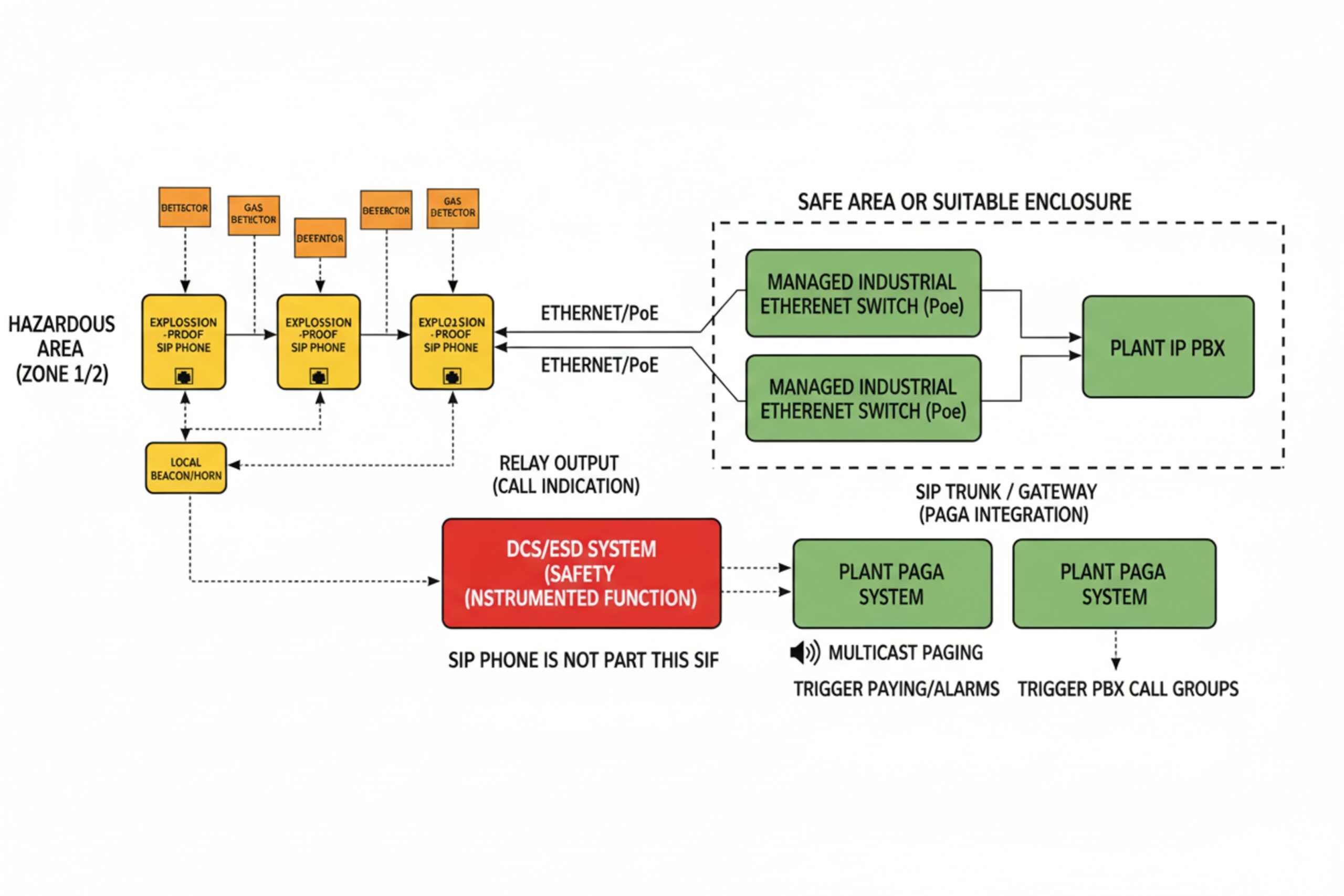

Can phones tie into IP PBX, PAGA, beacons, gas detectors, and ESD?

In an SRU, people wear PPE and move fast during alarms. A phone must support dispatch, paging, and clear alarm behavior. If it is just a “dial tone,” it will be bypassed.

Yes. SIP telephones can register to an IP PBX, support paging into PAGA, and interface with beacons and gas detection alarms through relays, SIP events, or PLC logic. ESD should remain owned by the SIS/PLC, while phones support callout and coordination.

IP PBX integration: keep it stable and simple

Standard SIP registration ⁸ works well in refineries. What matters is not fancy features. It is resilience:

• primary and secondary PBX registration

• auto-recover after PoE or switch reboot

• loud audio for high-noise equipment areas

• dedicated hotline buttons for control room and safety

For SRU work, a “hotline + auto-answer paging” setup often helps more than a directory.

PAGA paging: match plant paging architecture

Plants use different paging architectures:

• SIP paging to PAGA ⁹ gateways

• multicast paging in the OT network

• analog paging with SIP-to-analog gateways

A phone can fit any of these when it supports paging modes that the plant uses. The plant should also define priority rules so paging does not block emergency calls.

Beacons and gas detectors: let PLC logic do the heavy lifting

Gas detectors and beacons are usually part of a broader alarm system. The cleanest design is:

• gas detector alarms go to PLC/DCS/SIS

• PLC triggers beacons and paging logic

• PBX or dispatch server triggers callouts to phones

• phones provide two-way voice and acknowledgement, not the safety decision

This keeps audit trails clean. It also keeps the phone out of the safety-critical decision chain while still making it a strong emergency communication tool.

ESD integration: support, do not replace

ESD must remain deterministic and code-compliant. The phone can help after ESD initiation:

• automatic call to control room or emergency group

• paging announcement to clear or evacuate

• local beacon trigger for “call for help” stations (through PLC input)

Integration methods table for SRU communications

System	Best integration method	Why it works
IP PBX	SIP register + ring groups + hotline	fast calling and simple training
PAGA	SIP paging or multicast + gateway	plant-wide alerts near noisy units
Beacons	phone relay to PLC input, or PLC-driven beacon	keeps high-power circuits controlled
Gas detectors	detector to PLC/DCS, then paging/callouts	avoids phone becoming safety logic
ESD/SIS	SIS triggers events, phones provide voice	keeps safety authority in SIS

In DJSlink-style deployments, the projects that run smoothly define these interfaces early. It prevents late rework in the marshaling cabinets and the network design.

After integration, the last compliance checkpoint is always the same: cable entry, glands, seal fittings, bonding, and temperature class.

What EX glands, seal fittings, bonding, and T-class ensure compliance?

A certified phone can still be rejected if the installer uses the wrong gland, leaves an unused entry unsealed, or skips bonding. SRUs also add heat and corrosion, so the “almost right” installation does not last.

Compliance comes from using Ex-certified glands and stopping plugs that match the certificate, installing seal fittings per the site wiring method, bonding the enclosure into the plant earthing network, and selecting a T-class and mounting position that stay safe near hot equipment.

EX glands and entries: treat them as part of the protection concept

For Zone equipment, the certificate often specifies the allowed cable entry style and any special conditions. For flameproof (Ex d) devices, correct glands and plugs are critical. In many real installs, the gland is the first corrosion failure point, so stainless gland selection is not a luxury in SRUs.

Good practice includes:

• Ex-certified glands matched to cable diameter and type

• barrier glands when the design calls for them

• certified stopping plugs on unused entries

• correct thread type and engagement depth

• correct torque so seals compress as designed

Seal fittings: follow the plant’s wiring method rules

In Class/Division conduit systems, seal fittings are often required near explosionproof enclosures and at boundary points, based on the electrical design and local code practice. In cable systems, the equivalent control is correct Ex glands and sealing methods.

The important part is consistency. Mixing “conduit rules” and “cable rules” in the same run without a clear design basis creates inspection questions.

Bonding: keep it simple and inspectable

Bonding is the boring work that saves lives. In an SRU, corrosion can weaken bonding over time, so the bonding path should be obvious and easy to inspect.

A good SRU bonding approach:

• use the phone’s external earth stud or bonding point

• bond to the local equipotential network

• avoid paint under bonding lugs unless the lug is designed for it

• use corrosion-resistant hardware and re-check during turnarounds

T-class and hot surfaces: do not mount a “cool-rated” phone on a hot frame

T-class ¹⁰ is about the maximum surface temperature of the device. A stricter T-class gives more margin, but mounting location still matters. If the phone is mounted near hot piping, hot casings, or hot steelwork, the phone can heat up beyond its intended conditions even if it is electrically correct.

Practical controls that work well:

• keep distance from hot surfaces and radiant heat sources

• use standoff brackets and heat shields where needed

• choose a T-class that fits the gas risk and the worst ambient

• confirm the ambient range on the certificate, not only on the datasheet

Installation checklist table for SRU acceptance

Item	What inspectors expect	SRU-specific failure mode
Glands and plugs	certified, correct type, correct torque	corrosion at the entry causes leaks
Unused entries	certified stopping plugs	temporary plugs left in place
Seals / seal fittings	installed per design rules	missing seal at boundary or enclosure
Bonding	solid, visible, corrosion-resistant	bonding lug loosens after heat cycles
T-class + placement	rating fits hazard, placement avoids heat soak	phone mounted too close to hot equipment
Maintenance	flamepaths and seals kept clean	gasket damage during service

When these details are controlled, the phone becomes a reliable SRU tool. It supports fast response during H2S alarms. It survives the environment. It also passes compliance checks without last-minute rebuilds.

Conclusion

Explosion-proof SIP telephones are suitable for SRUs when the Zone/Div marking, gas group, T-class, materials, and installation method match the real Claus-area hazards.
