Are explosion-proof SIP telephones suitable for tank farms?

Tank farms ¹ look calm until they are not. Vapors can travel with wind. Lightning can hit a nearby structure. During an incident, one working phone near a tank ring road can save minutes.

Yes. Explosion-proof SIP telephones are suitable for tank farms when the Zone/Class-Div rating matches the tank type and rim-seal hazards, the enclosure survives rain and corrosion, and the installation includes proper earthing, surge control, and certified sealing at cable entries.

Tank farm selection logic: match the hazard ring, then engineer uptime

Tank farms are about distance and exposure

Tank farms have long outdoor cable routes, open wind exposure, and wide spacing between assets. This changes what matters:

• Lightning and induced surges become a top failure driver.

• IP sealing and gland quality decide whether water enters during storms.

• Corrosion at brackets and fasteners grows fast if the farm is coastal.

At the same time, the hazard study is usually clear about where vapors can exist:

• rim seals ² and vents on floating-roof tanks

• vents and hatches on fixed-roof tanks

• pump manifolds and transfer skids

• loading arms and sampling points

• dyke areas where vapor can accumulate under calm conditions

A tank farm phone is part of the emergency workflow

Tank farm phones are often used for:

• emergency calls to control room and fire team

• dispatch coordination during transfers

• paging to PAGA ³ horns in an incident

• triggering strobes/beacons at a call point

• sending “emergency active” to PLC or ESD ⁴ logic

So selection should prioritize:

• certified hazardous-area rating

• loud alerting and clear SOS operation

• dry-contact I/O for beacons and valve commands (via PLC, not directly)

• network design with QoS and multicast control

A quick “tank farm baseline spec”

Need	Baseline requirement	Why it matters in tank farms
Classified area fit	Zone 1/2 or Class I Div 1/2 + correct gas group	avoids inspection rejections
Outdoor sealing	IP66 minimum, IP67 for low points	storms and washdown
Corrosion resistance	316L or NEMA 4X 5 corrosion approach	long-term appearance and MTTR
Surge resilience	bonding + surge arresters + fiber backbone where possible	lightning and long runs
Integration	SIP + relay I/O + paging groups	emergency workflow support

Once this baseline is clear, the first hard question is classification: floating roof vs fixed roof tanks and what “rim seal” implies for rating.

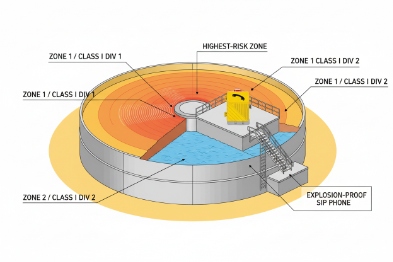

Which Zone 1/2 or Class I Div 1/2 ratings suit floating-roof and fixed tanks?

Tank type changes where vapors appear. Floating-roof tanks have rim seals and roof fittings that can release vapor. Fixed-roof tanks release from vents and hatches, often under different operating conditions. The phone rating must match the location.

Floating-roof tanks often drive stricter requirements near rim seals and roof fittings, while fixed-roof tanks focus on vent and hatch release areas. In many designs, areas close to likely release points are treated as Zone 1 or Class I Div 1 intent, and surrounding areas are treated as Zone 2 or Class I Div 2 intent, but the final selection must follow the hazardous area classification drawing for the specific tank farm.

Practical placement guidance that reduces cost and risk

Most tank farms do not mount phones directly at rim seals. They mount phones on:

• stair landings or access gates

• bund entry points

• pump pads and manifold platforms

• ring road call points at defined spacing

This placement often allows the phone to sit in a less stringent zone while still serving the operational need.

Typical starting points by location

Location	Typical classification tendency	Practical requirement to start with
Near floating-roof rim seal walkway	higher vapor likelihood	Zone 1 Gb or Div 1 if required by the drawing
Near fixed-roof vent/hatch	release possible at openings	Zone 1 near vent outlet; Zone 2 further away
Ring road call point away from vents	lower likelihood	Zone 2 Gc or Div 2
Pump manifold and valve stations	frequent transfers and seals	Zone 1/2 by point; many owners choose Zone 1

Gas group and product type in tank farms

Tank farms can store:

• gasoline and light products

• crude

• condensate

• chemicals and blends

That means gas group requirements can vary. Many owners set a conservative standard so:

• a single phone model can serve across products

• placement errors are less likely

• spare parts are simpler

In practice, tank farms often specify at least IIB capability for hydrocarbon vapors, and some owners demand IIC capability for wider coverage even if hydrogen is not present. The right answer is always the site standard and the stored product list.

Once the rating matches the zone, the phone still has to survive storms and surges. Tank farms are brutal for surge events.

Will IP66/67, 316L/NEMA 4X housings resist vapors, rain, and lightning surges?

Rain and vapors are manageable with sealing and materials. Lightning is the bigger tank farm risk, because long runs act like antennas.

IP66/IP67 sealing and corrosion-resistant housings (316L or NEMA 4X style corrosion protection) can handle vapors and storms when glands and gaskets are correct. Lightning surge resilience depends on bonding, surge protection, and network design, not only on the phone enclosure.

IP66/67: what to request for tank farms

• IP66 ⁶ fits heavy rain, hose-down, and water jets.

• IP67 is useful for low mounting points and bund areas where water can stand.

Most failures come from the cable entry, not from the housing. So the spec should include:

• certified glands matched to cable type

• sealed unused entries with certified plugs

• post-install inspection and torque marks

316L and NEMA 4X: corrosion control in open fields

Tank farms are often exposed to:

• fertilizer and agricultural corrosion near some sites

• coastal salt mist for terminals

• chemical vapors from additives

316L helps, but hardware matters more:

• 316L fasteners and brackets

• anti-galling practice

• consistent metals to reduce galvanic corrosion

• protective coating strategy if using aluminum housings

Lightning surges: design the network to survive

For surge resilience, a stable plan often includes:

• fiber backbone between cabinets and zones

• PoE switches on UPS with surge protection at cabinet boundaries

• Ethernet/PoE surge arresters for long copper drops where needed

• short bonding leads and a clear equipotential bar in each cabinet

A phone alone cannot “absorb” a direct lightning surge. The system must manage it.

Risk	What protects best	What to verify
Rain and washdown	IP66/67 + correct glands	recheck IP after installation
Vapor exposure	seal materials + correct placement	gasket and keypad compatibility
Corrosion	316L hardware + coating plan	fastener spec and bracket material
Lightning surge	fiber backbone + SPDs + bonding	surge test records and earthing checks

With survivability set, the phone becomes valuable when it integrates with PBX and safety equipment. Tank farms often rely on PAGA horns and beacons.

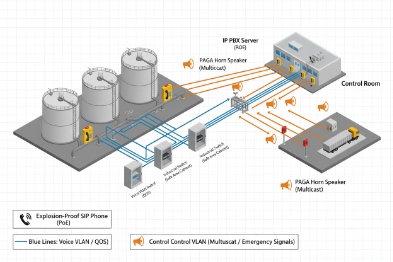

Can phones integrate with IP PBX, PAGA, beacons, and ESD valves?

A tank farm emergency response relies on audible and visible alerts and fast coordination. A SIP phone should support that without creating unsafe wiring paths.

Yes. Ex SIP telephones can integrate with IP PBX for hotline and group calling, trigger PAGA horns through paging servers or controller inputs, activate beacons via relay outputs, and interface to ESD valve logic through PLC I/O. The safest approach keeps valve shutdown logic in the ESD system and uses the phone as a trigger or status point.

IP PBX integration: emergency routing and logging

PBX ⁷ integration supports:

• dedicated emergency extensions and call groups

• escalation rules if no one answers

• call recording and audit logs where required

• remote monitoring of registration state

For large tank farms, VLAN and QoS keep voice stable during paging and during network reconvergence.

PAGA horns: two stable integration patterns

• Multicast paging from PBX/paging server to horn controllers

• Relay trigger from the phone to a paging controller input for pre-recorded tones

Many tank farms prefer the second approach for critical alarm tones because it is simple and predictable.

Beacons and strobes: local guidance during incidents

Relays can trigger:

• a local strobe near a call point

• a beacon at a gate or stair

• an input to a local panel that controls multiple indicators

The relay should drive a control input, not a heavy load directly, unless the relay rating and wiring design are confirmed.

ESD valves: keep safety logic centralized

Phones should not directly actuate ESD valves. The safer model is:

• phone relay triggers a PLC ⁸ input

• PLC logic applies interlocks and safety rules

• ESD system actuates valves and records the event

This keeps shutdown actions auditable and compliant.

Integration need	Best interface	Why it works
Emergency calling	SIP to PBX/SBC	central routing and logs
Plant-wide alert	multicast or controller trigger	wide coverage with priority
Local visibility	relay to beacon controller	guides responders
Shutdown request/status	PLC I/O + interlocks	safe and auditable

Now, the hardest part to get right is installation rules near rim seals and vents. Inspectors focus on earthing, conduit seals, and T-class.

What earthing, conduit seals, and gas-group/T-class rules govern rim seals?

Most tank farm inspection findings are not about the phone model. They are about the installation method and the location relative to vapor release points.

Earthing and bonding must connect the phone to the equipotential network with a short, corrosion-resistant path. Conduit and cable sealing must follow the local code and the Ex certificate, using certified glands or seal-offs to prevent gas migration. Gas group and T-class must match the area schedule near rim seals and vents, with Ta ambient range checked for sun and radiant heat exposure.

Earthing and bonding: short and traced but strong

Tank farms often have large structures and long bonding networks. A phone should:

• have a clear earth stud

• bond to the local equipotential bar

• avoid long looping earth paths

• use corrosion-resistant lugs and hardware

A recorded continuity check during commissioning helps prove compliance.

Conduit seals and cable glands: do not improvise

Two common installation schemes exist:

• Zone-style installs: certified glands and certified plugs, with barrier glands where required.

• Class/Div installs: conduit runs with sealing fittings placed per the code and site standard.

The mistake is mixing industrial glands or skipping seal-offs because “it is outdoors.” Tank vapors can travel through conduits and trenches.

Gas group: match the most severe credible vapor at that tank area

Tank farms can store many products. The classification may be based on the worst case. If the farm includes lighter products, the gas group requirement may be higher. Many owners standardize a higher group rating to reduce placement errors.

T-class: especially important near sun and hot equipment

Rim seal and roof areas can see:

• high sun loading

• hot metal surfaces in summer

• limited airflow in some corners

So the correct check is:

• area schedule required T-class

• device nameplate T-class and Ta range

• placement away from direct heat sources where possible

A simple field checklist for rim seal adjacent areas

Item	What to confirm	Why it passes inspection
Location vs zone boundary	phone is placed per drawing	avoids wrong-zone installation
Ex marking	group, T-class, Ta match	ensures suitability
Cable entry	certified gland or seal-off	maintains protection concept
Bonding	short, robust equipotential bond	reduces static and surge issues
Commissioning	hotline call + paging + beacon trigger test	proves emergency workflow

A tank farm is one of the best use cases for Ex SIP phones because communication points are spread out and emergencies need fast coordination. The key is to treat the phone as part of the tank farm safety system and install it with the same discipline used for other hazardous-area equipment.

Conclusion

Explosion-proof SIP telephones suit tank farms when floating/fixed tank zones drive the correct Zone/Class-Div and gas-group/T-class choices, IP66/67 and 316L/NEMA 4X protect outdoors, integrations support PBX/PAGA/PLC workflows, and bonding and sealing follow code near rim seals.
