Do explosion-proof telephones support HTTPS?

Unsecured web access and provisioning are quiet failures. A single leaked password can turn a safety endpoint into a weak link across the whole plant.

Yes, many explosion-proof SIP telephones support HTTPS, but the real value depends on TLS version, certificate handling, and how HTTPS ties into provisioning, APIs, and SIP security across your network.

What “HTTPS support” should mean for an Ex telephone?

HTTPS is not a checkbox in hazardous sites

HTTPS on a rugged phone is not only for “opening the web page.” It becomes the security layer for management actions: firmware uploads, configuration changes, user accounts, and API calls. In hazardous sites, those actions are sensitive because devices are hard to access and often run unattended for long periods. A weak HTTPS stack can create a long-term risk that nobody notices until an incident.

Treat HTTPS requirements as three layers

A solid purchase spec separates HTTPS into three layers:

1) Transport strength

The device should support modern TLS versions and strong cipher suites. It should also disable legacy protocols and weak ciphers by default. If the device still allows old TLS modes without admin control, it becomes hard to pass modern IT policies.

2) Certificate lifecycle

A device that supports HTTPS but makes certificate management painful becomes insecure over time. Real sites need a way to install proper certificates, keep CA chains correct, and rotate certificates without walking to each unit in a hard hat and gas detector.

3) Integration and identity

HTTPS should connect to the rest of the security stack: SIP over TLS (SIPS), SRTP, 802.1X, and management platforms like ACS or NMS. The phone should not be “secure alone.” It should be secure as part of the system.

A practical target profile for tenders

This profile keeps security strong without turning the project into a research job:

HTTPS feature	Minimum target	Preferred target	Why it matters
TLS versions	TLS 1.2	TLS 1.2 + TLS 1.3	Meets modern policy and reduces risk
Ciphers	AES-GCM, ECDHE	AES-GCM + modern curves	Prevents weak encryption choices
Admin control	Enable/disable legacy	Strong defaults + hard disable	Avoids backdoor downgrade paths
Certificates	CA chain + server cert	CSR + mTLS option	Makes integration possible
Provisioning & API	HTTPS supported	HTTPS + token auth + RBAC	Reduces credential leakage

The goal is simple: a phone that can join a security-controlled network without exceptions.

Next, the most common buyer question is about TLS versions and cipher strength.

Which HTTPS/TLS versions and cipher suites are supported—TLS 1.2/1.3, strong ciphers, and HSTS?

Weak TLS settings do not fail loudly. They fail quietly, then show up as audit findings or worse, device compromise.

A good Ex telephone HTTPS stack should support TLS 1.2 at minimum, prefer TLS 1.3 when available, and offer strong cipher suites such as ECDHE with AES-GCM. HSTS is helpful, but only when the device is always managed over HTTPS and never needs HTTP access in the field.

TLS versions: what to request

For industrial endpoints, TLS 1.2 is the baseline because it is widely supported across PBXs, ACS platforms, and browsers. TLS 1.3 ¹ is a strong improvement, but support varies by embedded stacks and vendor firmware timelines. A clean requirement line is:

• “TLS 1.2 mandatory, TLS 1.3 preferred, with ability to disable older versions.”

That line forces the supplier to show actual support, not vague marketing.

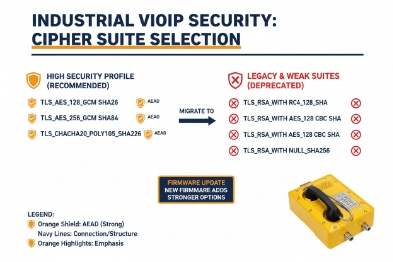

Cipher suites: how to avoid weak options

The safest cipher families ² for embedded HTTPS today are:

• ECDHE key exchange (forward secrecy)

• AES-GCM or ChaCha20-Poly1305 for encryption

• SHA-256 or better for hashing

The practical issue is not only which ciphers exist. It is whether the device can exclude weak ciphers, or whether it always offers a long list that includes risky options. In multi-site deployments, the cleanest outcome is a short, modern list.

HSTS: useful, but not always right for field service

HSTS ³ forces browsers to use HTTPS. That can reduce mistakes, but it can also block emergency access if the certificate is broken and the site needs a temporary service session. In hazardous sites, service is planned, so HSTS often works well when:

• Certificates are managed properly

• The site has a defined certificate renewal plan

• Local IT is comfortable with “HTTPS only” device management

If the site still relies on quick HTTP fallback, HSTS can cause trouble. A better approach is to disable HTTP in steady state and keep a controlled recovery path in the maintenance SOP, not in the browser.

TLS/cipher item	What to check in lab	What to demand in deployment
TLS 1.2/1.3	Browser test and scan output	Disable legacy TLS
Cipher suite list	Confirm ECDHE + AES-GCM	Remove RC4/3DES and weak DH
Redirect behavior	HTTP → HTTPS redirect works	Option to disable HTTP
HSTS	Header present and correct	Use only with stable cert lifecycle

After transport strength, the next pain point is certificates. Many projects fail here because nobody plans renewal.

How are certificates managed—CSR upload, private keys, CA chains, and auto-renew via ACME or SCEP?

A certificate that expires on a weekend becomes a service outage and a security scramble. In hazardous zones, reaching the device can take hours and permits.

Certificate management should support installing a server certificate and full CA chain, generating or uploading a CSR, and protecting private keys. Auto-renew via SCEP is more common in enterprise networks, while ACME can work when the device or a management gateway supports it in a controlled way.

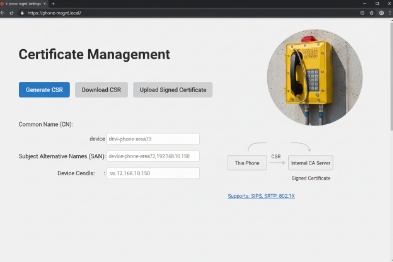

CSR and key handling: what “good” looks like

A mature device can do one of these safely:

• Generate a key pair internally, then export a CSR ⁴

• Accept a CSR and key generated by a secure enterprise process

Internal key generation is often safer because the private key never leaves the device. If keys must be imported, the device should support secure formats and should prevent accidental key exposure in logs or backups.

CA chain and trust store: small detail, big impact

Most HTTPS failures in the field are not “bad encryption.” They are missing intermediate CA certificates ⁵. A proper device should allow:

• Upload of full certificate chain (server + intermediate + root as needed)

• Clear display of certificate status and expiry time

• Clear selection of which certificate applies to which service (web UI vs provisioning vs SIP-TLS if shared)

Renewal options: ACME and SCEP in real industrial use

Auto-renew is ideal, but only if it is stable:

• SCEP fits enterprise certificate infrastructures and can be managed centrally. It works well when the security team already runs certificate services.

• ACME is popular for automation. In industrial networks, ACME often works best through a central management system or gateway that handles renewal and pushes certificates to devices, rather than having each phone talk to an ACME server directly.

In many plants, the most realistic plan is “central renewal and push,” not device-level auto-renew. It still solves the problem because devices are updated by policy, not by manual visits.

What to include in a tender “certificate lifecycle” clause

A strong clause is short and specific:

• “Support CSR generation, certificate and chain upload, private key protection, certificate expiry display, and remote certificate update via provisioning or management platform.”

Certificate task	Must-have capability	Why it matters for multi-site
Initial install	CSR + chain upload	Speeds onboarding and avoids browser errors
Private key safety	Key stored securely	Reduces theft risk
Rotation	Remote update path	Avoids site visits
Visibility	Expiry warning and logs	Prevents surprise outages
mTLS readiness	Optional client cert	Enables high-trust management

Once certificates are under control, HTTPS becomes a tool for provisioning and APIs. That is where the biggest operational savings appear.

Can HTTPS secure provisioning and APIs—zero-touch, HTTPS redirect, OAuth tokens, and role-based access for multi-site deployments?

Manual provisioning does not scale. In hazardous sites, manual work also increases safety exposure time for technicians.

Yes. HTTPS can secure provisioning and device APIs when zero-touch onboarding is used, HTTP is redirected or disabled, credentials are not shared across sites, and admin access is controlled with RBAC and token-based authentication. OAuth-style tokens are ideal when the vendor supports them, but strong per-device credentials and RBAC still work when tokens are not available.

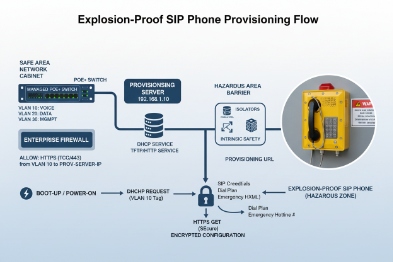

Zero-touch with HTTPS: keep it simple and repeatable

A stable zero-touch ⁶ flow looks like this:

• Phone boots on the voice VLAN

• DHCP gives the provisioning URL (and option tags if needed)

• Phone pulls config over HTTPS

• Phone validates the server certificate or pins trust correctly

• Phone receives SIP settings, VLAN, QoS, and NMS targets

The key is: provisioning must not fall back to plaintext during failure. If HTTP fallback exists, it should be a controlled maintenance mode, not the default.

HTTPS redirect and “HTTPS only”

Redirecting HTTP to HTTPS reduces user mistakes. Still, “HTTPS only” is stronger. If the site can handle it, disabling HTTP entirely is the cleanest approach. It removes downgrade risk and reduces audit scope.

API security: tokens, RBAC, and least privilege

If the phone exposes an API (HTTP/HTTPS), it should support:

• Role-based access control (admin vs operator vs read-only)

• Separate credentials per device or per site group

• Session timeouts and lockouts for repeated failures

• Optional token-based methods for automation tools

OAuth tokens are useful for large integrations, but they are not always available on embedded endpoints. A practical policy is:

• Use tokens when supported

• If not, use per-device credentials with strict RBAC and restricted management VLAN access

Multi-site control: avoid shared secrets

One shared admin password across 200 phones is an incident waiting to happen. A multi-site deployment should use:

• Unique credentials per site or per device

• Central password vaulting or device management tooling

• Audit logs of changes and logins

Management need	Secure option	What it prevents
Provisioning	HTTPS + server validation	MITM config injection
Local web access	HTTPS only + RBAC	Credential theft and misuse
Automation	Token auth or scoped creds	Over-privileged scripts
Multi-site ops	Unique secrets + audit logs	One breach becomes many breaches

Now, HTTPS is only part of the security story. SIP itself must be secured so voice signaling and media are protected end-to-end.

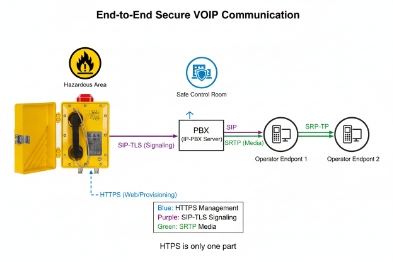

How does HTTPS integrate with SIP security—SIPS signaling, SRTP media, 802.1X, and TLS mutual authentication with PBX/ACS?

A phone can have perfect HTTPS and still leak call metadata if SIP signaling is plaintext. A secure deployment treats web, SIP signaling, and media as one security plan.

HTTPS secures management, while SIP security is handled by SIP over TLS (SIPS) and SRTP for media. 802.1X controls network access at the port level, and mutual TLS can strengthen trust between the phone and PBX/ACS when supported.

SIPS and SRTP: the minimum secure voice target

• SIP over TLS (SIPS) encrypts signaling, protecting credentials and call setup details.

• SRTP encrypts the voice media, protecting content.

A good system requires both. Signaling without SRTP still exposes voice. SRTP without SIP-TLS ⁷ can still leak credentials and call routes. In high-risk sites, both should be enabled for critical stations.

TLS mutual authentication: when it helps most

Mutual TLS (mTLS) is useful when the site wants strong device identity:

• The phone presents a client certificate to the PBX or ACS

• The server verifies the device identity before accepting control or registration

This reduces risk from rogue devices. It also improves audit posture. Still, mTLS requires certificate lifecycle discipline. Without that, it becomes a maintenance burden.

802.1X: stop rogue devices at the switch

802.1X ⁸ is not about encryption. It is about controlling which device can connect to the network. In refineries and terminals, 802.1X can:

• Prevent random laptops from joining the voice VLAN

• Ensure only approved phones get PoE and VLAN assignment

• Support per-port policies

This pairs well with secure HTTPS and SIP-TLS because it reduces the number of devices that can even attempt to talk to your servers.

Keep it operational: do not break emergency calling

Security should not block emergencies. A sensible design keeps:

• Emergency hotline behavior working even if the WAN is down

• Local survivable call control where needed

• Clear fallback rules if certificate issues occur, with strict procedure control

Security layer	What it protects	What to verify in acceptance tests
HTTPS	Web UI, provisioning, API	TLS version, cert validity, RBAC 9
SIPS (SIP-TLS)	Signaling and credentials	TLS registration and failover
SRTP	Voice media	Encrypted RTP 10 confirmed
802.1X	Network admission control	Port authentication and VLAN assignment
mTLS	Device identity trust	Cert rotation and rejection behavior

A secure Ex telephone deployment is not “turn everything on.” It is “turn on what the site can maintain and audit.” The strongest projects keep security simple, repeatable, and tested under real outage conditions.

Conclusion

Explosion-proof telephones can support HTTPS when TLS is modern, certificates are manageable, provisioning and APIs are locked down, and SIP security uses SIPS, SRTP, and strong network admission controls.

---
