Do explosion-proof telephones support Modbus?

A SIP Ex phone can look “smart,” but SCADA still cannot see it. Then alarms stay inside the PBX, and operators miss the status that matters.

Some explosion-proof telephones can support Modbus, but native Modbus is not the default. Most projects use Modbus TCP or Modbus RTU through a gateway or PLC by mapping phone events (alarm, fault, relay) into Modbus coils and registers.

What “Modbus support” really means for Ex telephones

Native Modbus vs integration Modbus

Modbus is common in OT, but many explosion-proof telephones are designed as SIP endpoints first. That means the phone usually speaks SIP, RTP, HTTP, SNMP, or dry-contact IO. Native Modbus inside the phone exists in some special models, but it is not guaranteed. In hazardous sites, this is actually a good thing. A gateway or PLC ¹ keeps OT protocols in a cabinet where maintenance is easier and safer.

The safest architecture for most plants

The most reliable pattern is simple:

• The Ex telephone provides events (off-hook, emergency, fault) through relay outputs, digital inputs, or network events.

• A nearby PLC/RTU or Modbus gateway converts those events into Modbus coils and registers.

• SCADA reads Modbus and writes control bits only when needed (like siren or strobe control).

This reduces risk. It also keeps the phone firmware changes from breaking SCADA tags.

What to ask vendors before buying

A phone can “work with Modbus” in two different ways. Buyers should ask one direct question: “Please provide the Modbus register map and the supported function codes for this exact model and firmware.” If the vendor cannot provide that, the design is not truly Modbus-ready.

If the goal is predictable SCADA behavior for years, the “gateway or PLC” path is the safest default.

Next, it helps to answer the practical questions: TCP or RTU, what tags exist, how fast to poll, and how to secure Modbus in a hazardous site.

Is Modbus TCP or RTU available for status, alarms, and relay control?

A project fails when SCADA expects Modbus TCP and the device only offers relays. That mistake shows up during FAT, not during quoting.

Most explosion-proof telephone projects use one of three paths:

• Modbus TCP through an industrial Ethernet gateway or PLC

• Modbus RTU (RS-485) through a PLC/RTU if the site already uses RS-485 trunks

• No direct Modbus, but relay outputs and inputs that are mapped into Modbus by the PLC

Modbus TCP is usually the preferred method over Ethernet because it fits modern plant networks and is easy to route inside cabinets. Modbus RTU can work, but RS-485 cabling and hazardous-area installation rules must be handled carefully. Relay control is common and is often the most reliable way to drive strobes or sirens through Modbus coils.

When Modbus TCP makes the most sense

Modbus TCP ² is a good fit when:

• the phone is already on Ethernet for SIP and PoE

• SCADA data is collected in an OT VLAN

• the plant prefers fewer serial buses and fewer troubleshooting points

In this setup, the phone does not need to speak Modbus. The gateway or PLC does.

When Modbus RTU is still useful

Modbus RTU is useful when:

• the site has a strong RS-485 standard

• cable runs are short and well-managed

• the plant wants a simple serial trunk for status bits

Still, in hazardous areas, RS-485 cabling ³ needs correct glands, shielding rules, and sometimes barriers depending on the protection concept. Many sites avoid running new RS-485 deep into Zone 1 unless there is a strong reason.

Relay control is often the best “control” channel

For output actions like beacon, siren, or door strike, many Ex phones provide a dry-contact relay. SCADA writes one Modbus coil to the PLC, and the PLC drives the relay action through wiring or through the phone’s IO if available.

The next step is the register map. Without a clean map, Modbus becomes “some numbers that nobody trusts.”

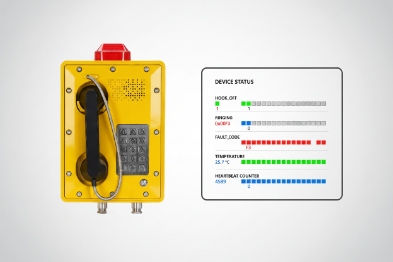

Which registers and coils expose hookswitch, fault, temperature, and input states?

A Modbus system is only as good as its point list. The best point list is small and focused.

Typical Modbus mapping uses coils for binary states (off-hook, emergency, fault, input active, relay active) and holding/input registers for values (temperature, firmware version, last event code, counters). Exact addresses vary by vendor, so a register map document is required for the exact model and firmware.

A practical “minimum tags” register model

Most plants get strong results with a compact set:

• Hookswitch / off-hook

• Call active (optional if available)

• Emergency active (latched)

• Fault (device health)

• Tamper (optional)

• Relay states (strobe/siren)

• Temperature (optional but useful in harsh climates)

• Heartbeat counter (integration health)

Example mapping structure used in many gateways

This is a practical pattern for a gateway or PLC register design. The actual register numbers can be chosen to match site standards.

Coils (0xxxx) for states and commands

• Coil 00001: OffHook (read)

• Coil 00002: Emergency_Latched (read)

• Coil 00003: Fault (read)

• Coil 00004: Input1 (read)

• Coil 00005: Input2 (read)

• Coil 00011: Relay1_Command (write)

• Coil 00012: Relay2_Command (write)

Holding registers (4xxxx) for values

• Reg 40001: Temperature_x10 (read)

• Reg 40002: Heartbeat_Counter (read)

• Reg 40003: Last_Event_Code (read)

• Reg 40004: Firmware_Rev (read as integer code)

Define latching and acknowledgment rules

Emergency should usually latch in SCADA or PLC logic. The phone may provide a momentary “emergency pressed” signal. The PLC latches it, SCADA displays it, and an operator acknowledges it. That workflow is stable and audit-friendly.

If a vendor claims “Modbus supported” but cannot show coil/register behavior, the integration will turn into custom work later.

Now the next problem is reliability. Polling too fast can overload networks. Polling too slow can delay alarms. The answer is a balanced polling strategy with clear timeouts.

What polling rates, function codes, and timeouts ensure reliable updates over Ethernet or RS-485?

Modbus looks simple, but poor settings create phantom faults and delayed alarms. That is common on busy plant networks.

Reliable Modbus uses moderate polling rates, stable function codes (01/02/03/04/05/06/15/16 as needed), and conservative timeouts with retry limits. Over Ethernet, 1–2 second polling for critical coils is often enough. Over RS-485, 2–5 seconds is safer in multi-drop networks, with longer timeouts and fewer retries.

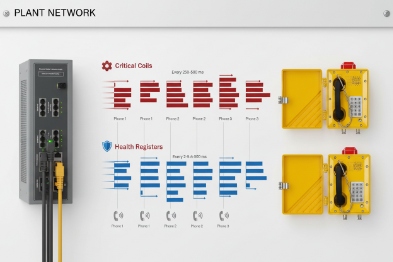

Polling strategy: fast for alarms, slower for maintenance values

A simple and effective approach:

• Poll critical coils (emergency, fault, online) every 1–2 seconds on Modbus TCP.

• Poll non-critical registers (temperature, firmware) every 10–30 seconds.

• Use event-driven latching in PLC logic when possible, so SCADA does not rely only on polling to “catch” short events.

On RS-485, the bus is shared. If many slaves exist, polling too fast causes collisions and timeouts. Slower, consistent polling is better than aggressive polling that creates noise.

Function codes that keep systems stable

Most SCADA systems use these reliably:

• Read Coils (01) and Read Discrete Inputs (02) for bit states

• Read Holding Registers (03) and Read Input Registers (04) for values

• Write Single Coil (05) and Write Single Register (06) for simple control

• Write Multiple Coils (15) and Write Multiple Registers (16) for grouped actions

A good register map ⁴ groups related states so SCADA can read them in fewer requests. That lowers load and improves update consistency.

Timeouts and retries: avoid “retry storms”

A common failure mode is a retry storm. The SCADA master times out and retries too aggressively, which increases congestion, which causes more timeouts.

A conservative baseline often works well:

• Modbus TCP timeout: 500–1500 ms depending on network

• Retries: 1–2

• Inter-request delay: small but consistent

• Alarm delay in SCADA: 5–10 seconds to avoid nuisance alarms from brief packet loss

On RS-485, timeouts should be longer, and retries should be limited:

• RTU timeout: often 1–3 seconds depending on baud rate and bus length

• Retries: 1

• Bus discipline: fixed baud rate, termination, biasing, and shield rules

The last piece is security. Modbus has no built-in encryption and weak authentication. In hazardous sites, that is unacceptable without compensating controls.

How do I secure Modbus—TLS gateways, firewalls, read-only roles, and network segmentation in hazardous sites?

A Modbus tag can control a relay. If the network is flat, that control can be abused by mistake or by attack. In petrochemical sites, that is not acceptable.

Modbus should be secured by placing it inside segmented OT networks, using firewalls and allow-lists, enforcing read-only roles for most users, and using a secure gateway for any cross-zone communication. If encryption is needed, use TLS/VPN tunnels or an OPC UA/MQTT bridge, because Modbus itself does not provide TLS.

Segment first: VLANs and zones reduce risk fast

A practical model for hazardous sites:

• Voice VLAN for SIP endpoints

• OT services VLAN for gateways and collectors

• SCADA VLAN for servers and HMIs

• Firewall rules between VLANs with explicit allow-lists

The gateway becomes the single controlled point where phone events become Modbus tags.

Use a gateway as a security control point

A good gateway can:

• limit which tags are writable

• rate-limit writes

• log who wrote what and when

• present secure northbound interfaces (like OPC UA ⁵ or MQTT over TLS)

If Modbus must cross a boundary, tunneling through a secure channel is better than exposing Modbus directly.

Enforce read-only roles and write controls

Most SCADA users should never write to Modbus coils that trigger alarms. A safe role model:

• Operators: read-only + acknowledge in SCADA

• Maintenance: limited controls with logging

• Admin: configuration and mapping changes under change control

Write permissions should be minimal, and write actions should be deliberate. For example, a relay coil that triggers a strobe should require a maintained “enable” condition or a two-step action in SCADA.

Firewall rules that match real needs

Many Modbus deployments only need:

• TCP 502 from SCADA to the gateway

• No inbound access to the phone VLAN from SCADA

• Management interfaces (HTTP/SNMP) restricted to a maintenance subnet

A secured Modbus design also improves uptime. Less random access means fewer strange communication drops and fewer “SCADA is unstable” arguments.

Conclusion

Explosion-proof telephones can support Modbus, but the most reliable solution is a gateway or PLC that maps phone events into Modbus coils and registers with secure segmentation ⁷ and proven polling settings.
