OVERVIEW

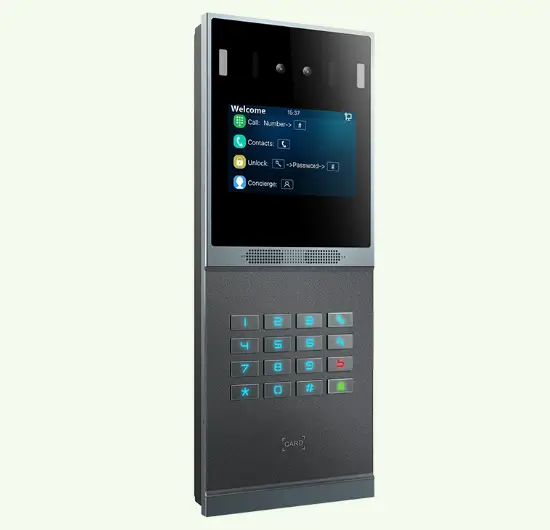

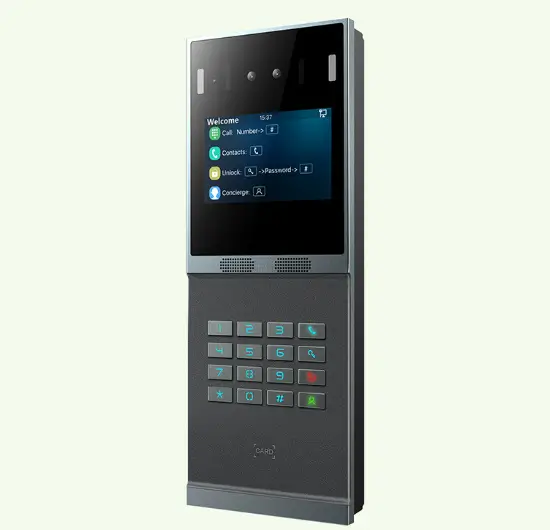

The DJSlink i66 face recognition door phone is equipped with a 4-inch IPS color screen and incorporates high-precision face recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With multiple door opening methods, it is widely applicable in community, apartment, and office building scenarios.
Specifications
-
Panel Type： Multi-apartment，Community，Hotel
-
Screen/Keyboard：7-inch 600×1024 touch screen；12 Numeric Keys
-
Body ：Aluminum
-
Panel Type： Multi-apartment，Community，Hotel
-
Screen/Keyboard： 4-inch 800×480 Color Screen 12 Numeric Keys+4 Function Keys
-
Body： Aluminum
-
Colors： Gunmetal
-
Sensor： 1/2.8-inch
-
Camera： 2 Mpx ×2 (Automatic lighting)
-
Viewing Angle： 62°(Horizontal) 37.4°(Vertical)
-
Output video： H.264 (Baseline,Main Profile)
-
Light Sensitivity： 0.1Lux
-
Card Storage： 1,0000
-
Face Storage： 1,0000
-
Power Consumption： PoE: 7.7~ 19.8W Adapter: 6.3~ 18.5W
-
Power Supply： DC 12V / 2A (If not using POE+) POE 802.3at Class 4
-
Working Temperature： -40℃~+60℃
-
Storage temperature： -40℃~+70℃
-
Size of the Panel ：300×115.6×33.2mm
-
IP / IK Level：IP66 / IK07
-
Installation：Wall-mounted；Flush-mounted(Need to Purchase Accessories Separately：EX103)
Functional Capabilities
- Supported Protocols：SIP 2.0 over UDP/TCP/TLS
- Lock Opening：Face Recognition，IC/ID Card，PIN Code，QR Code，By DTMF Code，Remote door opening
- Interface：Wiegand Input/Output；Short Circuit Input/Output；RS485 (Reserve)
- Supported Wiegand：26, 34 bit
- Supported ONVIF Types： Profile S
- Supported Standards： Mifare Classic 1K/4K，Mifare DESFire，Mifare Ultralight，Mifare Plus Cards 13.56 MHz，Cards 125 kHz
- Talking Mode： Full duplex (High-definition Audio)
- Additionally： Built-in relay，Open API，Motion detection，Tamper Alarm (gravity sensing)，Smart noisereduction
