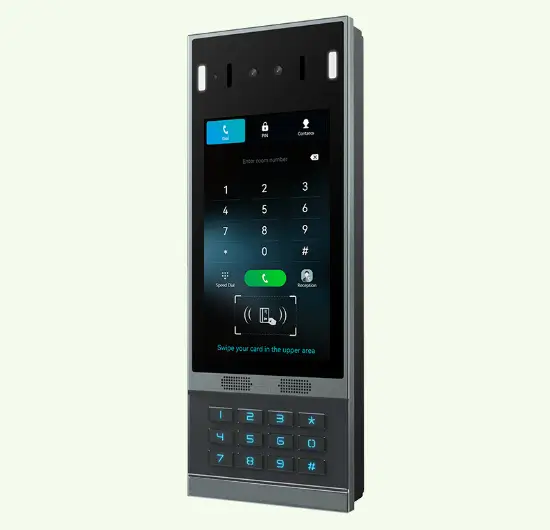

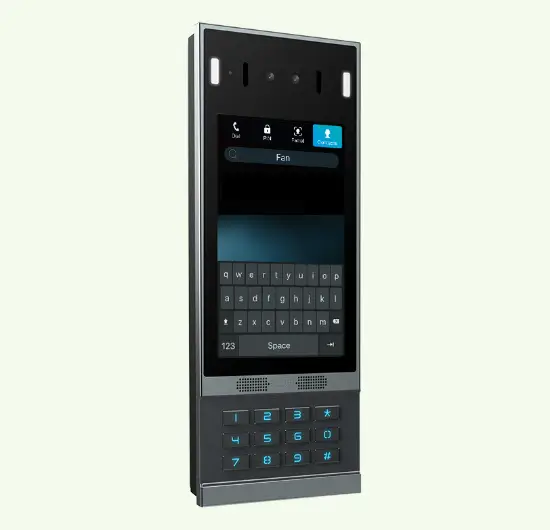

The i67 face recognition door phone is equipped with a 7-inch IPS touch screen and incorporates high-precision face recognition technology. It features anti-spoofing liveness detection for images, videos, and masks, maximizing community security. Additionally, it supports audio and video communication with IP phones, indoor stations, or via a mobile app. With multiple door opening methods, it is widely applicable in community, apartment, and office building scenarios.
Specifications
- Panel Type： Multi-apartment，Community，Hotel
- Screen/Keyboard：7-inch 600×1024 touch screen；12 Numeric Keys
- Body ：Aluminum
- Colors： Gunmetal
- Sensor： 1/2.8-inch
- Camera： 2 Mpx ×2 (Automatic lighting)
- Viewing Angle： 62°(Horizontal) 37.4°(Vertical)
- Output video： H.264 (Baseline,Main Profile)
- Light Sensitivity: 0.1Lux
- Card Storage： 1,0000
- Face Storage： 1,0000
- Power Consumption：PoE: 7.9~ 23.1W；Adapter: 6.8~21.5W
- Power Supply：DC 12V / 2A (If not using POE+)；POE 802.3at Class 4
- Working Temperature ：-20℃~+60℃
- Storage temperature： -20℃~+70℃
- Size of the Panel (LWH) ：300×115.6×33.2mm
- IP / IK Level：IP66 / IK07
- Installation:Wall-mounted；Flush-mounted (Need to Purchase Accessories Separately：EX103)
Functional Capabilities
- Supported Protocols SIP 2.0 over UDP/TCP/TLS
- Lock Opening：Face Recognition，IC/ID Card，PIN Code，QR Code，By DTMF Code，Remote door opening
- Interface：Wiegand Input/Output；Short Circuit Input/Output；RS485 (Reserve)
- Supported Wiegand：26, 34 bit
- Supported ONVIF Types： Profile S
- Supported Standards： Mifare Classic 1K/4K，Mifare DESFire，Mifare Ultralight，Mifare Plus, Cards 13.56 MHz，Cards 125 kHz
- Talking Mode： Full duplex (High-definition Audio)
- Additionally： Built-in relay，Open API，Motion detection，Tamper Alarm (gravity sensing)，Smart noisereduction
