overview

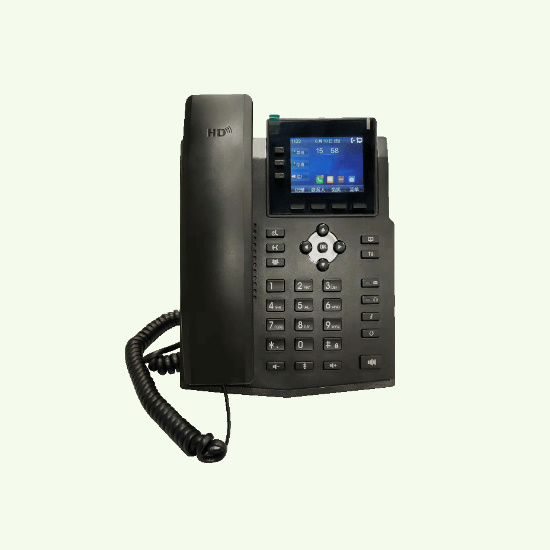

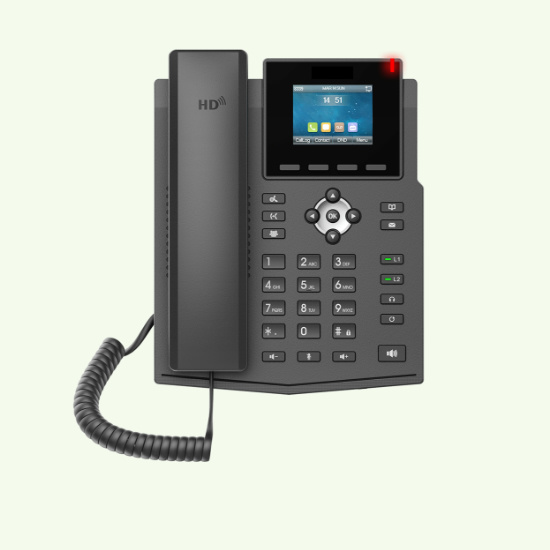

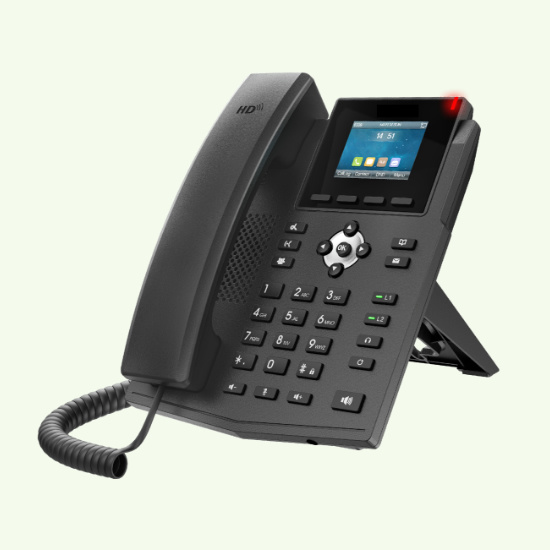

The DJSlink-X3V is equipped with a 2.4-inch color LCD and newly added function keys, supporting 100Mbps Ethernet, 6 SIP accounts, built-in 2.4G WiFi, PoE power supply, and rich features such as three-way conferencing. It also supports external EHS wireless headsets and other expansion functionalities. Compatible with major platforms like Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, and more, it meets the needs of various enterprise application scenarios.
Generic
- HD Voice
- PoE Enabled (X3SP Pro Only)
- 2.4-inch color screen
- Handset / Hands-free / Headset mode
- Desktop Stand / Wall-mounted (need an additional wall hanging parts)
- Optional External Power Supply
Phone Functions
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Blocked Call List/Allowed Call List
- Screen saver
- Voice Message Waiting Indication (VMWI) -Programmable DSS/Soft keys -Network Time Synchronization -Support Poly wireless headset (Through Poly APD-80 EHS Cable) -Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) -Support Recording (Through Server) -Action URL / Active URI -uaCSTA
Call Functions
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 6-way audio conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
- VQM voice quality monitoring
Network
- Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD: 2.4-inch (320×240) Color Screen
- Keypad: 34 keys, including ➢ 4 Soft-keys ➢ 7 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Redial) ➢ 2 Line keys (With LED Indicator Light) ➢ 4 Navigation keys ➢ 1 OK key ➢ 12 Standard Phone Digits keys ➢ 3 Volume Control keys (Up/Down/Mute (Microphone)) ➢ 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT.5E Ethernet Cable x1
- Back Rack x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- Safety Keyhole x1
- DC Power Input: DC5V / 0.6A
- Power Consumption: Idle 0.91.48W, Peak 2.033.03W
- Working Temperature: 045℃
- Working Humidity: 1095%
- Qty/CTN：10pcs
- N.W/CTN: ➢ X3S Pro: 9.36kg ➢ X3SP Pro: 9.43kg
- G.W/CTN: 8.71kg ➢ X3S Pro: 10.12kg ➢ X3SP Pro: 10.16kg
- Installation: ➢ Desktop Stand ➢ Wall-mounted (need an additional wall hanging parts)
- Color: Black
- Device Dimensions: ➢ Desktop Stand (Angles 1): 169×186.3×174.5 mm ➢ Desktop Stand (Angles 2): 169×177.6×183.7 mm ➢ Wall-mounted: 169×115.6×212.5 mm
- Gift Box Dimensions: 274x215x68 mm
- Outer CTN Dimensions: 450x360x294 mm (10 PCS)
